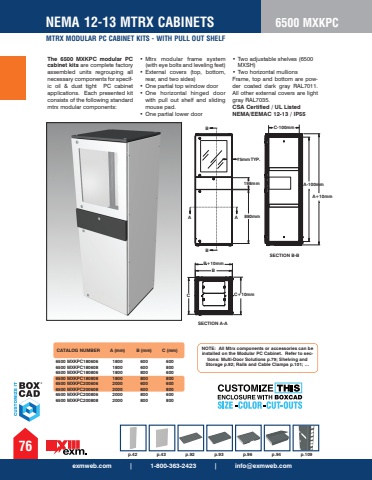

exmweb.com | 1-800-363-2423 | [email protected] 12-13 MTRX CABINETSMTRX MODULAR PC CABINET KITS - WITH PULL OUT SHELF766500 MXKPCThe 6500 MXKPC modular PC cabinet kits are complete factory assembled units regrouping all necessary components for specific oil & dust tight PC cabinet applications. Each presented kit consists of the following standard mtrx modular components: %u2022 Mtrx modular frame system(with eye bolts and leveling feet)%u2022 External covers (top, bottom,rear, and two sides)%u2022 One partial top window door%u2022 One horizontal hinged doorwith pull out shelf and slidingmouse pad.%u2022 One partial lower door%u2022 Two adjustable shelves (6500MXSH)%u2022 Two horizontal mullionsFrame, top and bottom are powder coated dark gray RAL7011.All other external covers are lightgray RAL7035.CSA Certified / UL ListedNEMA/EEMAC 12-13 / IP55A ABBSECTION A-ABCB+10mmC+10mmSECTION B-BA+10mmA-100mmC-100mm198mm880mm75mmTYP.6500 MXKPC180606 6500 MXKPC180608 6500 MXKPC180806 6500 MXKPC180808 6500 MXKPC200606 6500 MXKPC200608 6500 MXKPC200806 6500 MXKPC200808 1800 1800 1800 1800 2000 2000 2000 2000 600 600 800 800 600 600 800 800 600 800 600 800 600 800 600 800 CATALOG NUMBER A (mm) B (mm) C (mm) NOTE: All Mtrx components or accessories can be installed on the Modular PC Cabinet. Refer to sections: Multi-Door Solutions p.79; Shelving and Storage p.92; Rails and Cable Clamps p.101; %u2026p.42 p.43 p.92 p.93 p.96 p.94 p.109
