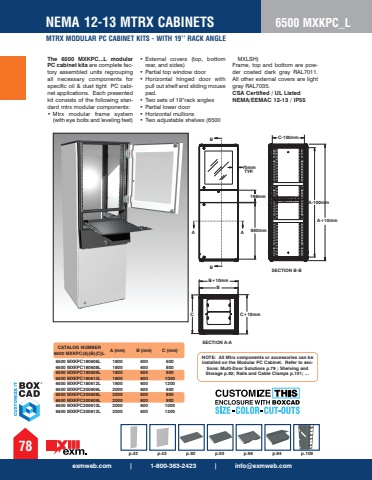

exmweb.com | 1-800-363-2423 | [email protected] 12-13 MTRX CABINETSMTRX MODULAR PC CABINET KITS - WITH 19%u2019%u2019 RACK ANGLE786500 MXKPC_Lp.42 p.43 p.92 p.93 p.96 p.94 p.109The 6500 MXKPC...L modular PC cabinet kits are complete factory assembled units regrouping all necessary components for specific oil & dust tight PC cabinet applications. Each presented kit consists of the following standard mtrx modular components: %u2022 Mtrx modular frame system(with eye bolts and leveling feet)%u2022 External covers (top, bottomrear, and sides)%u2022 Partial top window door%u2022 Horizontal hinged door withpull out shelf and sliding mousepad.%u2022 Two sets of 19%u201drack angles%u2022 Partial lower door%u2022 Horizontal mullions%u2022 Two adjustable shelves (6500MXLSH) Frame, top and bottom are powder coated dark gray RAL7011. All other external covers are light gray RAL7035. CSA Certified / UL Listed NEMA/EEMAC 12-13 / IP55A ABBSECTION A-ABCB+10mmC+10mm198mm880mmSECTION B-BA+10mmA-100mmC-100mm75mmTYP.6500 MXKPC180606L 6500 MXKPC180608L 6500 MXKPC180609L 6500 MXKPC180610L 6500 MXKPC180612L 6500 MXKPC200606L 6500 MXKPC200608L 6500 MXKPC200609L 6500 MXKPC200610L 6500 MXKPC200612L 1800 1800 1800 1800 1800 2000 2000 2000 2000 2000 600 600 600 600 600 600 600 600 600 600 600 800 900 1000 1200 600 800 900 1000 1200 CATALOG NUMBER 6500 MXKPC(A)(B)(C)L A (mm) B (mm) C (mm) NOTE: All Mtrx components or accessories can be installed on the Modular PC Cabinet. Refer to sections: Multi-Door Solutions p.79 ; Shelving and Storage p.92; Rails and Cable Clamps p.101; %u2026
