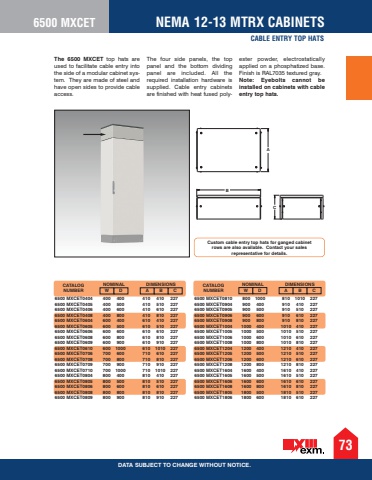

CABLE ENTRY TOP HATS6500 MXCET73NEMA 12-13 MTRX CABINETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 6500 MXCET top hats are used to facilitate cable entry into the side of a modular cabinet system. They are made of steel and have open sides to provide cable access. The four side panels, the top panel and the bottom dividing panel are included. All the required installation hardware is supplied. Cable entry cabinets are finished with heat fused polyester powder, electrostatically applied on a phosphatized base. Finish is RAL7035 textured gray. Note: Eyebolts cannot be installed on cabinets with cable entry top hats.CABCATALOG NUMBERDIMENSIONS6500 MXCET0404 400 400 410 410 227 6500 MXCET0405 400 500 410 510 227 6500 MXCET0406 400 600 410 610 227 6500 MXCET0408 400 800 410 810 227 6500 MXCET0604 600 400 610 410 227 6500 MXCET0605 600 500 610 510 227 6500 MXCET0606 600 600 610 610 227 6500 MXCET0608 600 800 610 810 227 6500 MXCET0609 600 900 610 910 227 6500 MXCET0610 600 1000 610 1010 227 6500 MXCET0706 700 600 710 610 227 6500 MXCET0708 700 800 710 810 227 6500 MXCET0709 700 900 710 910 227 6500 MXCET0710 700 1000 710 1010 227 6500 MXCET0804 800 400 810 410 227 6500 MXCET0805 800 500 810 510 227 6500 MXCET0806 800 600 810 610 227 6500 MXCET0808 800 800 810 810 227 6500 MXCET0809 800 900 810 910 227 CATALOG NUMBER6500 MXCET0810 800 1000 810 1010 227 6500 MXCET0904 900 400 910 410 227 6500 MXCET0905 900 500 910 510 227 6500 MXCET0906 900 600 910 610 227 6500 MXCET0908 900 800 910 810 227 6500 MXCET1004 1000 400 1010 410 227 6500 MXCET1005 1000 500 1010 510 227 6500 MXCET1006 1000 600 1010 610 227 6500 MXCET1008 1000 800 1010 810 227 6500 MXCET1204 1200 400 1210 410 227 6500 MXCET1205 1200 500 1210 510 227 6500 MXCET1206 1200 600 1210 610 227 6500 MXCET1208 1200 800 1210 810 227 6500 MXCET1604 1600 400 1610 410 227 6500 MXCET1605 1600 500 1610 510 227 6500 MXCET1606 1600 600 1610 610 227 6500 MXCET1608 1600 800 1610 810 227 6500 MXCET1805 1800 500 1810 510 227 6500 MXCET1806 1800 600 1810 610 227W D A B CNOMINAL DIMENSIONSW D A B CNOMINALCustom cable entry top hats for ganged cabinet rows are also available. Contact your sales representative for details.
