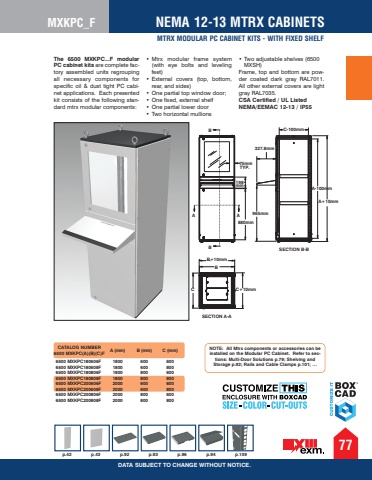

MTRX MODULAR PC CABINET KITS - WITH FIXED SHELFMXKPC_F77NEMA 12-13 MTRX CABINETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 6500 MXKPC...F modular PC cabinet kits are complete factory assembled units regrouping all necessary components for specific oil & dust tight PC cabinet applications. Each presented kit consists of the following standard mtrx modular components: %u2022 Mtrx modular frame system(with eye bolts and levelingfeet)%u2022 External covers (top, bottom,rear, and sides)%u2022 One partial top window door;%u2022 One fixed, external shelf%u2022 One partial lower door%u2022 Two horizontal mullions%u2022 Two adjustable shelves (6500MXSH)Frame, top and bottom are powder coated dark gray RAL7011. All other external covers are light gray RAL7035. CSA Certified / UL Listed NEMA/EEMAC 12-13 / IP55A ABBSECTION A-ABCB+10mmC+10mmSECTION B-BA+10mmA-100mmC-100mm327.8mm198mm880mm965mm75mmTYP.6500 MXKPC180606F 6500 MXKPC180608F 6500 MXKPC180806F 6500 MXKPC180808F 6500 MXKPC200606F 6500 MXKPC200608F 6500 MXKPC200806F 6500 MXKPC200808F 1800 1800 1800 1800 2000 2000 2000 2000 600 600 800 800 600 600 800 800 600 800 600 800 600 800 600 800 CATALOG NUMBER 6500 MXKPC(A)(B)(C)F A (mm) B (mm) C (mm) NOTE: All Mtrx components or accessories can be installed on the Modular PC Cabinet. Refer to sections: Multi-Door Solutions p.79; Shelving and Storage p.92; Rails and Cable Clamps p.101 ; %u2026 p.42 p.43 p.92 p.93 p.96 p.94 p.109
