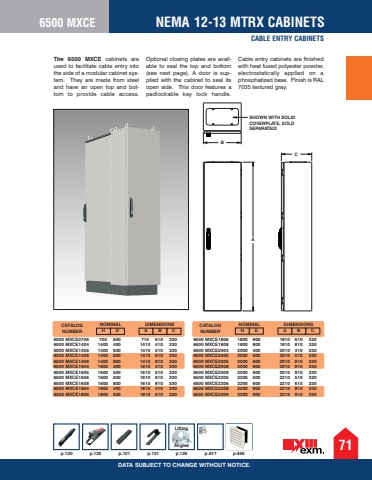

CABLE ENTRY CABINETS6500 MXCE71NEMA 12-13 MTRX CABINETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 6500 MXCE cabinets are used to facilitate cable entry into the side of a modular cabinet system. They are made from steel and have an open top and bottom to provide cable access. Optional closing plates are available to seal the top and bottom (see next page). A door is supplied with the cabinet to seal its open side. This door features a padlockable key lock handle. Cable entry cabinets are finished with heat fused polyester powder, electrostatically applied on a phosphatized base. FInish is RAL 7035 textured gray.ACBSHOWN WITH SOLIDCOVERPLATE, SOLDSEPARATELY.DIMENSIONS6500 MXCE0706 700 600 710 610 330 6500 MXCE1404 1400 400 1410 410 330 6500 MXCE1405 1400 500 1410 510 330 6500 MXCE1406 1400 600 1410 610 330 6500 MXCE1408 1400 800 1410 810 330 6500 MXCE1604 1600 400 1610 410 330 6500 MXCE1605 1600 500 1610 510 330 6500 MXCE1606 1600 600 1610 610 330 6500 MXCE1608 1600 800 1610 810 330 6500 MXCE1804 1800 400 1810 410 330 6500 MXCE1805 1800 500 1810 510 330 CATALOG NUMBER6500 MXCE1806 1800 600 1810 610 330 6500 MXCE1808 1800 800 1810 810 330 6500 MXCE2004 2000 400 2010 410 330 6500 MXCE2005 2000 500 2010 510 330 6500 MXCE2006 2000 600 2010 610 330 6500 MXCE2008 2000 800 2010 810 330 6500 MXCE2009 2000 900 2010 910 330 6500 MXCE2205 2200 500 2210 510 330 6500 MXCE2206 2200 600 2210 610 330 6500 MXCE2208 2200 800 2210 810 330 6500 MXCE2209 2200 900 2210 910 330 H D A B CNOMINAL DIMENSIONSH D A B CCATALOG NOMINALNUMBERp.122 p.121 p.121 p.125 p.617 p.655Lifting Anglesp.120
