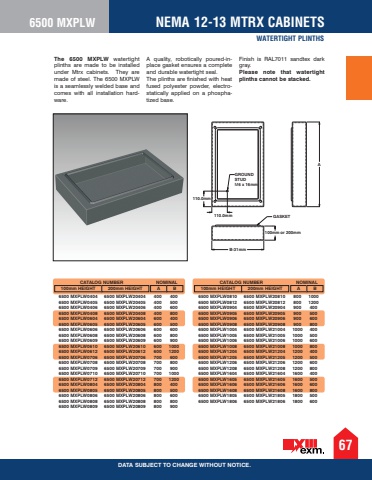

WATERTIGHT PLINTHS6500 MXPLW67NEMA 12-13 MTRX CABINETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 6500 MXPLW watertight plinths are made to be installed under Mtrx cabinets. They are made of steel. The 6500 MXPLW is a seamlessly welded base and comes with all installation hardware. A quality, robotically poured-inplace gasket ensures a complete and durable watertight seal. The plinths are finished with heat fused polyester powder, electrostatically applied on a phosphatized base. Finish is RAL7011 sandtex dark gray. Please note that watertight plinths cannot be stacked.B-31mm100mm or 200mmGASKET 110.0mm110.0mmGROUNDSTUDM6 x 16mmA6500 MXPLW0404 6500 MXPLW20404 400 400 6500 MXPLW0405 6500 MXPLW20405 400 500 6500 MXPLW0406 6500 MXPLW20406 400 600 6500 MXPLW0408 6500 MXPLW20408 400 800 6500 MXPLW0604 6500 MXPLW20604 600 400 6500 MXPLW0605 6500 MXPLW20605 600 500 6500 MXPLW0606 6500 MXPLW20606 600 600 6500 MXPLW0608 6500 MXPLW20608 600 800 6500 MXPLW0609 6500 MXPLW20609 600 900 6500 MXPLW0610 6500 MXPLW20610 600 1000 6500 MXPLW0612 6500 MXPLW20612 600 12006500 MXPLW0706 6500 MXPLW20706 700 600 6500 MXPLW0708 6500 MXPLW20708 700 800 6500 MXPLW0709 6500 MXPLW20709 700 900 6500 MXPLW0710 6500 MXPLW20710 700 1000 6500 MXPLW0712 6500 MXPLW20712 700 1200 6500 MXPLW0804 6500 MXPLW20804 800 400 6500 MXPLW0805 6500 MXPLW20805 800 500 6500 MXPLW0806 6500 MXPLW20806 800 600 6500 MXPLW0808 6500 MXPLW20808 800 800 6500 MXPLW0809 6500 MXPLW20809 800 900 6500 MXPLW0810 6500 MXPLW20810 800 1000 6500 MXPLW0812 6500 MXPLW20812 800 1200 6500 MXPLW0904 6500 MXPLW20904 900 400 6500 MXPLW0905 6500 MXPLW20905 900 500 6500 MXPLW0906 6500 MXPLW20906 900 600 6500 MXPLW0908 6500 MXPLW20908 900 800 6500 MXPLW1004 6500 MXPLW21004 1000 400 6500 MXPLW1005 6500 MXPLW21005 1000 500 6500 MXPLW1006 6500 MXPLW21006 1000 600 6500 MXPLW1008 6500 MXPLW21008 1000 800 6500 MXPLW1204 6500 MXPLW21204 1200 400 6500 MXPLW1205 6500 MXPLW21205 1200 500 6500 MXPLW1206 6500 MXPLW21206 1200 600 6500 MXPLW1208 6500 MXPLW21208 1200 800 6500 MXPLW1604 6500 MXPLW21604 1600 400 6500 MXPLW1605 6500 MXPLW21605 1600 500 6500 MXPLW1606 6500 MXPLW21606 1600 600 6500 MXPLW1608 6500 MXPLW21608 1600 800 6500 MXPLW1805 6500 MXPLW21805 1800 500 6500 MXPLW1806 6500 MXPLW21806 1800 600A BNOMINAL100mm HEIGHT 200mm HEIGHTCATALOG NUMBERA BNOMINAL100mm HEIGHT 200mm HEIGHTCATALOG NUMBER
