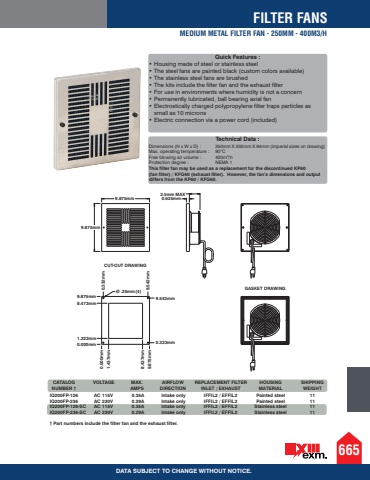

665FILTER FANSMEDIUM METAL FILTER FAN - 250MM - 400M3/HDATA SUBJECT TO CHANGE WITHOUT NOTICE.Quick Features : %u2022 Housing made of steel or stainless steel %u2022 The steel fans are painted black (custom colors available) %u2022 The stainless steel fans are brushed %u2022 The kits include the filter fan and the exhaust filter %u2022 For use in environments where humidity is not a concern %u2022 Permanently lubricated, ball bearing axial fan %u2022 Electrostically charged polypropylene filter traps particles as small as 10 microns %u2022 Electric connection via a power cord (included) Technical Data : Dimensions (H x W x D) : 250mm X 250mm X 64mm (imperial sizes on drawing) Max. operating temperature : 80%u00b0C Free blowing air volume : 400m3/h Protection degree : NEMA 1 This filter fan may be used as a replacement for the discontinued KP60 (fan filter) / KFG60 (exhaust filter). However, the fan%u2019s dimensions and output differs from the KP60 / KFG60.9.875mm9.875mm 0.625mm2.5mm MAX0.000mm1.223mm8.473mm9.875mm0.332mm 9.542mm9.543mm0.333mm0.000mm 1.437mm 8.437mm 9.875mm%u00d8 .25mm(4) GASKET DRAWINGCUT-OUT DRAWINGCATALOG VOLTAGE MAX. AIRFLOW REPLACEMENT FILTER HOUSING SHIPPING NUMBER %u2020 AMPS DIRECTION INLET / EXHAUST MATERIAL WEIGHTIQ200FP-126 AC 115V 0.35A Intake only IFFIL2 / EFFIL2 Painted steel 11 IQ200FP-236 AC 230V 0.29A Intake only IFFIL2 / EFFIL2 Painted steel 11 IQ200FP-126-SC AC 115V 0.35A Intake only IFFIL2 / EFFIL2 Stainless steel 11 IQ200FP-236-SC AC 230V 0.29A Intake only IFFIL2 / EFFIL2 Stainless steel 11 %u2020 Part numbers include the filter fan and the exhaust filter.
