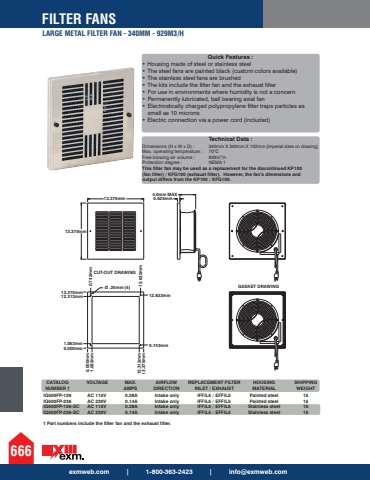

exmweb.com | 1-800-363-2423 | [email protected] FANSLARGE METAL FILTER FAN - 340MM - 929M3/H666Quick Features : %u2022 Housing made of steel or stainless steel %u2022 The steel fans are painted black (custom colors available) %u2022 The stainless steel fans are brushed %u2022 The kits include the filter fan and the exhaust filter %u2022 For use in environments where humidity is not a concern %u2022 Permanently lubricated, ball bearing axial fan %u2022 Electrostically charged polypropylene filter traps particles as small as 10 microns %u2022 Electric connection via a power cord (included) Technical Data : Dimensions (H x W x D) : 340mm X 340mm X 102mm (imperial sizes on drawing)Max. operating temperature : 70%u00b0C Free blowing air volume : 929m3/h Protection degree : NEMA 1 This filter fan may be used as a replacement for the discontinued KP100 (fan filter) / KFG100 (exhaust filter). However, the fan%u2019s dimensions and output differs from the KP100 / KFG100.13.375mm13.375mm0.625mm4.0mm MAX0.000mm1.063mm12.313mm13.375mm0.742mm 12.632mm12.633mm0.743mm0.000mm 1.062mm 12.312mm 13.375mm%u00d8 .25mm (4) GASKET DRAWINGCUT-OUT DRAWINGCATALOG VOLTAGE MAX. AIRFLOW REPLACEMENT FILTER HOUSING SHIPPING NUMBER %u2020 AMPS DIRECTION INLET / EXHAUST MATERIAL WEIGHTIQ500FP-126 AC 115V 0.28A Intake only IFFIL5 / EFFIL5 Painted steel 15 IQ500FP-236 AC 230V 0.14A Intake only IFFIL5 / EFFIL5 Painted steel 15 IQ500FP-126-SC AC 115V 0.28A Intake only IFFIL5 / EFFIL5 Stainless steel 15 IQ500FP-236-SC AC 230V 0.14A Intake only IFFIL5 / EFFIL5 Stainless steel 15 %u2020 Part numbers include the filter fan and the exhaust filter.
