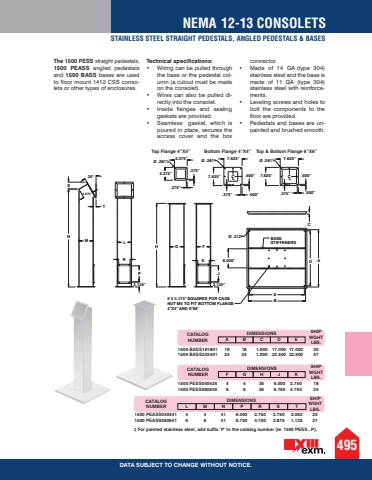

495NEMA 12-13 CONSOLETSSTAINLESS STEEL STRAIGHT PEDESTALS, ANGLED PEDESTALS & BASESDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 1500 PESS straight pedestals,1500 PEASS angled pedestals and 1500 BASS bases are used to floor mount 1412 CSS consolets or other types of enclosures. Technical specifications: %u2022 Wiring can be pulled through the base or the pedestal column (a cutout must be made on the consolet). %u2022 Wires can also be pulled directly into the consolet. %u2022 Inside flanges and sealing gaskets are provided. %u2022 Seamless gasket, which is poured in place, secures the access cover and the box connector. %u2022 Made of 14 GA (type 304) stainless steel and the base is made of 11 GA (type 304) stainless steel with reinforcements. %u2022 Leveling screws and holes to bolt the components to the floor are provided. %u2022 Pedestals and bases are unpainted and brushed smooth.BASESTIFFENERS%u00d8 .312%u201dBE8.000%u201d D AC5.375%u201d 7.625%u201d 7.625%u201d.500%u201d .500%u201d.375%u201d5.375%u201d 7.625%u201d 7.625%u201d.375%u201d.375%u201d.500%u201d .500%u201d.375%u201d%u00d8 .281%u201d %u00d8 .281%u201d %u00d8 .281%u201dCL CL2.125%u201dJKH G FM LRTPNS2.125%u201d4.375%u201d30%u00b08 X 0.375%u201d SQUARES FOR CAGENUT M6 TO FIT BOTTOM FLANGE4%u201dX4%u201d AND 6\CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.1500 BASS181801 18 18 1.000 17.000 17.000 20 1500 BASS242401 24 24 1.000 22.500 22.500 47CATALOG NUMBER F G H J KDIMENSIONS SHIP WGHT LBS.1500 PESS040435 4 4 35 6.000 2.750 18 1500 PESS060635 6 6 35 6.750 4.750 24CATALOG NUMBER L M N P R S TDIMENSIONS SHIP WGHT LBS.1500 PEASS040441 4 4 41 6.000 2.750 2.750 2.062 20 1500 PEASS060641 6 6 41 6.750 4.750 2.875 1.125 27Top Flange 4%u2019%u2019X4%u2019%u2019 Bottom Flange 4%u2019%u2019X4%u2019%u2019 Top & Bottom Flange 6%u2019%u2019X6%u2019%u2019%u2021 For painted stainless steel, add suffix %u2018P%u2019 to the catalog number (ie. 1500 PESS...P).
