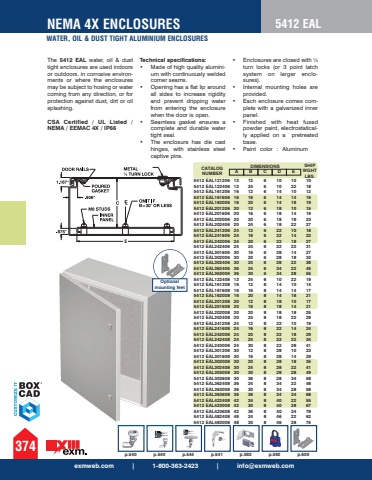

p.540 p.540 p.544 p.541 p.592 p.592 p.600%u201d%u201d%u201d%u201dThe 5412 EAL water, oil & dust tight enclosures are used indoors or outdoors, in corrosive environments or where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 4X / IP66 Technical specifications:%u2022 Made of high quality aluminium with continuously weldedcorner seams.%u2022 Opening has a flat lip aroundall sides to increase rigidityand prevent dripping waterfrom entering the enclosurewhen the door is open.%u2022 Seamless gasket ensures acomplete and durable watertight seal.%u2022 The enclosure has die casthinges, with stainless steelcaptive pins.%u2022 Enclosures are closed with %u00bcturn locks (or 3 point latchsystem on larger enclosures).%u2022 Internal mounting holes areprovided.%u2022 Each enclosure comes complete with a galvanized innerpanel.%u2022 Finished with heat fusedpowder paint, electrostatically applied on a pretreatedbase.%u2022 Paint color : AluminumOptional mounting feet5412 EALexmweb.com | 1-800-363-2423 | [email protected] 4X ENCLOSURES374WATER, OIL & DUST TIGHT ALUMINIUM ENCLOSURESA B C D EDIMENSIONS5412 EAL121206 12 12 6 10 10 10 5412 EAL122406 12 24 6 10 22 18 5412 EAL161206 16 12 6 14 10 12 5412 EAL161606 16 16 6 14 14 16 5412 EAL162006 16 20 6 14 18 19 5412 EAL201206 20 12 6 18 10 15 5412 EAL201606 20 16 6 18 14 19 5412 EAL202006 20 20 6 18 18 23 5412 EAL202406 20 24 6 18 22 27 5412 EAL241206 24 12 6 22 10 18 5412 EAL241606 24 16 6 22 14 22 5412 EAL242006 24 20 6 22 18 27 5412 EAL242406 24 24 6 22 22 31 5412 EAL301606 30 16 6 28 14 27 5412 EAL302006 30 20 6 28 18 33 5412 EAL302406 30 24 6 28 22 38 5412 EAL362406 36 24 6 34 22 45 5412 EAL363006 36 30 6 34 28 55 5412 EAL122408 12 24 8 10 22 19 5412 EAL161208 16 12 8 14 10 14 5412 EAL161608 16 16 8 14 14 17 5412 EAL162008 16 20 8 14 18 21 5412 EAL201208 20 12 8 18 10 17 5412 EAL201608 20 16 8 18 14 21 5412 EAL202008 20 20 8 18 18 25 5412 EAL202408 20 24 8 18 22 29 5412 EAL241208 24 12 8 22 10 19 5412 EAL241608 24 16 8 22 14 24 5412 EAL242008 24 20 8 22 18 29 5412 EAL242408 24 24 8 22 22 34 5412 EAL243008 24 30 8 22 28 41 5412 EAL301208 30 12 8 28 10 23 5412 EAL301608 30 16 8 28 14 29 5412 EAL302008 30 20 8 28 18 35 5412 EAL302408 30 24 8 28 22 41 5412 EAL303008 30 30 8 28 28 49 5412 EAL303608 30 36 8 28 34 58 5412 EAL362408 36 24 8 34 22 48 5412 EAL363008 36 30 8 34 28 58 5412 EAL363608 36 36 8 34 34 68 5412 EAL422408 42 24 8 40 22 55 5412 EAL423008 42 30 8 40 28 67 5412 EAL423608 42 36 8 40 34 78 5412 EAL482408 48 24 8 46 22 62 5412 EAL483008 48 30 8 46 28 75CATALOG NUMBERSHIP WGHT LBS.
