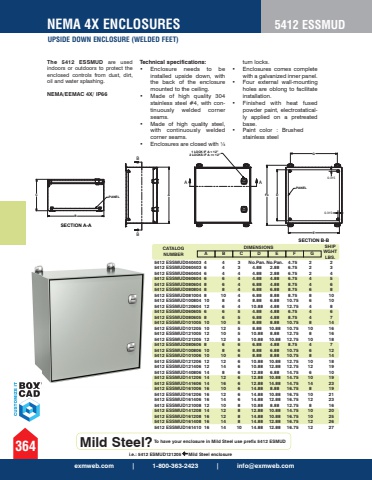

UPSIDE DOWN ENCLOSURE (WELDED FEET)The 5412 ESSMUD are used indoors or outdoors to protect the enclosed controls from dust, dirt, oil and water splashing. NEMA/EEMAC 4X/ IP66 Technical specifications: %u2022 Enclosure needs to beinstalled upside down, withthe back of the enclosuremounted to the ceiling.%u2022 Made of high quality 304stainless steel #4, with continuously welded cornerseams.%u2022 Made of high quality steel,with continuously weldedcorner seams.%u2022 Enclosures are closed with %u00bcturn locks. %u2022 Enclosures comes completewith a galvanized inner panel.%u2022 Four external wall-mountingholes are oblong to facilitateinstallation.%u2022 Finished with heat fusedpowder paint, electrostatically applied on a pretreatedbase.%u2022 Paint color : Brushed stainless steeli.e.: 5412 ESMUD121205 %uf0b0 Mild Steel enclosureMild Steel? To have your enclosure in Mild Steel use prefix 5412 ESMUD5412 ESSMUDexmweb.com | 1-800-363-2423 | [email protected] 4X ENCLOSURES364CATALOG NUMBER A B C D E F GDIMENSIONS SHIP WGHT LBS.5412 ESSMUD040403 4 4 3 No.Pan. No.Pan. 4.75 2 25412 ESSMUD060403 6 4 3 4.88 2.88 6.75 2 35412 ESSMUD060404 6 4 4 4.88 2.88 6.75 2 45412 ESSMUD060604 6 6 4 4.88 4.88 6.75 4 55412 ESSMUD080604 8 6 4 6.88 4.88 8.75 4 65412 ESSMUD080804 8 8 4 6.88 6.88 8.75 6 85412 ESSMUD081004 8 10 4 6.88 8.88 8.75 8 105412 ESSMUD100804 10 8 4 8.88 6.88 10.75 6 105412 ESSMUD120604 12 6 4 10.88 4.88 12.75 4 85412 ESSMUD060605 6 6 5 4.88 4.88 6.75 4 65412 ESSMUD080605 8 6 5 6.88 4.88 8.75 4 75412 ESSMUD101005 10 10 5 8.88 8.88 10.75 8 145412 ESSMUD101205 10 12 5 8.88 10.88 10.75 10 165412 ESSMUD121005 12 10 5 10.88 8.88 12.75 8 165412 ESSMUD121205 12 12 5 10.88 10.88 12.75 10 185412 ESSMUD080606 8 6 6 6.88 4.88 8.75 4 75412 ESSMUD100806 10 8 6 8.88 6.88 10.75 6 125412 ESSMUD101006 10 10 6 8.88 8.88 10.75 8 145412 ESSMUD121206 12 12 6 10.88 10.88 12.75 10 185412 ESSMUD121406 12 14 6 10.88 12.88 12.75 12 195412 ESSMUD140806 14 8 6 12.88 6.88 14.75 6 105412 ESSMUD141206 14 12 6 12.88 10.88 14.75 10 195412 ESSMUD141606 14 16 6 12.88 14.88 14.75 14 235412 ESSMUD161006 16 10 6 14.88 8.88 16.75 8 195412 ESSMUD161206 16 12 6 14.88 10.88 16.75 10 215412 ESSMUD161406 16 14 6 14.88 12.88 16.75 12 235412 ESSMUD121008 12 10 8 10.88 8.88 12.75 8 165412 ESSMUD141208 14 12 8 12.88 10.88 14.75 10 205412 ESSMUD161208 16 12 8 14.88 10.88 16.75 10 255412 ESSMUD161408 16 14 8 14.88 12.88 16.75 12 265412 ESSMUD161410 16 14 10 14.88 12.88 16.75 12 27SECTION B-BA ABBA DEPANEL1 LOCK IF A < 12\2 LOCKS IF A >= 12\0.3150.315GFoSECTION A-ABC PANEL
