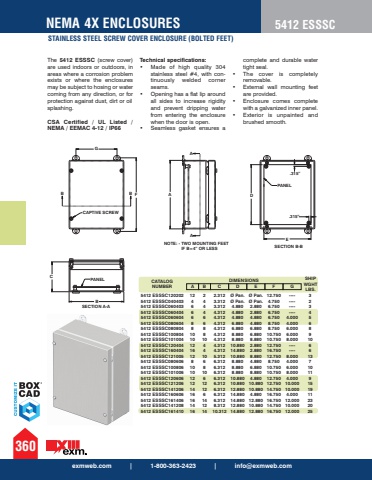

SECTION B-BE.315%u201dPANELD.315%u201dANOTE: - TWO MOUNTING FEETIF B=4%u201d OR LESSAAGB B FCAPTIVE SCREWCBSECTION A-APANEL5412 ESSSC360exmweb.com | 1-800-363-2423 | [email protected] 4X ENCLOSURESThe 5412 ESSSC (screw cover) are used indoors or outdoors, in areas where a corrosion problem exists or where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 4-12 / IP66Technical specifications: %u2022 Made of high quality 304stainless steel #4, with continuously welded cornerseams.%u2022 Opening has a flat lip aroundall sides to increase rigidityand prevent dripping waterfrom entering the enclosurewhen the door is open.%u2022 Seamless gasket ensures acomplete and durable water tight seal. %u2022 The cover is completelyremovable.%u2022 External wall mounting feetare provided.%u2022 Enclosure comes completewith a galvanized inner panel.%u2022 Exterior is unpainted andbrushed smooth.STAINLESS STEEL SCREW COVER ENCLOSURE (BOLTED FEET)CATALOG NUMBER A B C D E F GDIMENSIONS SHIP WGHT LBS.5412 ESSSC120202 12 2 2.312 %u00d8 Pan. %u00d8 Pan. 12.750 ---- 3 5412 ESSSC040403 4 4 3.312 %u00d8 Pan. %u00d8 Pan. 4.750 ---- 2 5412 ESSSC060403 6 4 3.312 4.880 2.880 6.750 ---- 3 5412 ESSSC060404 6 4 4.312 4.880 2.880 6.750 ---- 4 5412 ESSSC060604 6 6 4.312 4.880 4.880 6.750 4.000 5 5412 ESSSC080604 8 6 4.312 6.880 4.880 8.750 4.000 6 5412 ESSSC080804 8 8 4.312 6.880 6.880 8.750 6.000 8 5412 ESSSC100804 10 8 4.312 8.880 6.880 10.750 6.000 9 5412 ESSSC101004 10 10 4.312 8.880 8.880 10.750 8.000 10 5412 ESSSC120404 12 4 4.312 10.880 2.880 12.750 ---- 6 5412 ESSSC160404 16 4 4.312 14.880 2.880 16.750 ---- 6 5412 ESSSC121005 12 10 5.312 10.880 8.880 12.750 8.000 13 5412 ESSSC080606 8 6 6.312 8.880 4.880 8.750 4.000 7 5412 ESSSC100806 10 8 6.312 8.880 6.880 10.750 6.000 10 5412 ESSSC101006 10 10 6.312 8.880 8.880 10.750 8.000 11 5412 ESSSC120606 12 6 6.312 10.880 4.880 12.750 4.000 9 5412 ESSSC121206 12 12 6.312 10.880 10.880 12.750 10.000 15 5412 ESSSC141206 14 12 6.312 12.880 10.880 14.750 10.000 19 5412 ESSSC160606 16 6 6.312 14.880 4.880 16.750 4.000 11 5412 ESSSC161406 16 14 6.312 14.880 12.880 16.750 12.000 23 5412 ESSSC141208 14 12 8.312 12.880 10.880 14.750 10.000 20 5412 ESSSC161410 16 14 10.312 14.880 12.880 16.750 12.000 25
