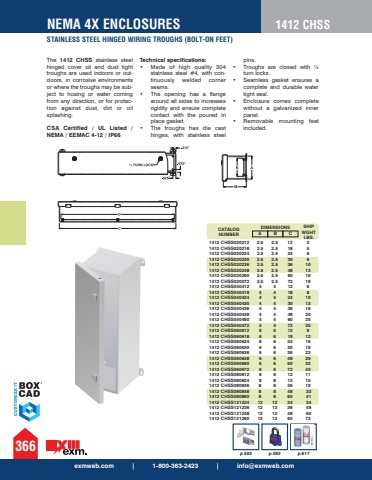

%u201d%u201d%u201dThe 1412 CHSS stainless steel hinged cover oil and dust tight troughs are used indoors or outdoors, in corrosive environments or where the troughs may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 4-12 / IP66Technical specifications:%u2022 Made of high quality 304stainless steel #4, with continuously welded cornerseams.%u2022 The opening has a flangearound all sides to increasesrigidity and ensure completecontact with the poured inplace gasket.%u2022 The troughs has die casthinges, with stainless steelpins. %u2022 Troughs are closed with %u00bcturn locks.%u2022 Seamless gasket ensures acomplete and durable watertight seal.%u2022 Enclosure comes completewithout a galvanized innerpanel.%u2022 Removable mounting feetincluded.p.592 p.592 p.617STAINLESS STEEL HINGED WIRING TROUGHS (BOLT-ON FEET)1412 CHSSexmweb.com | 1-800-363-2423 | [email protected] 4X ENCLOSURES366A B CCATALOG DIMENSIONSNUMBERSHIP WGHT LBS.1412 CHSS020212 2.5 2.5 12 3 1412 CHSS020218 2.5 2.5 18 51412 CHSS020224 2.5 2.5 24 61412 CHSS020230 2.5 2.5 30 91412 CHSS020236 2.5 2.5 36 101412 CHSS020248 2.5 2.5 48 13 1412 CHSS020260 2.5 2.5 60 16 1412 CHSS020272 2.5 2.5 72 191412 CHSS040412 4 4 12 61412 CHSS040418 4 4 18 81412 CHSS040424 4 4 24 10 1412 CHSS040430 4 4 30 13 1412 CHSS040436 4 4 36 16 1412 CHSS040448 4 4 48 201412 CHSS040460 4 4 60 251412 CHSS040472 4 4 72 301412 CHSS060612 6 6 12 91412 CHSS060618 6 6 18 121412 CHSS060624 6 6 24 16 1412 CHSS060630 6 6 30 191412 CHSS060636 6 6 36 231412 CHSS060648 6 6 48 291412 CHSS060660 6 6 60 321412 CHSS060672 6 6 72 431412 CHSS080812 8 8 12 11 1412 CHSS080824 8 8 12 15 1412 CHSS080836 8 8 36 19 1412 CHSS080848 8 8 48 33 1412 CHSS080860 8 8 60 41 1412 CHSS121224 12 12 24 341412 CHSS121236 12 12 36 49 1412 CHSS121248 12 12 48 60 1412 CHSS121260 12 12 60 73
