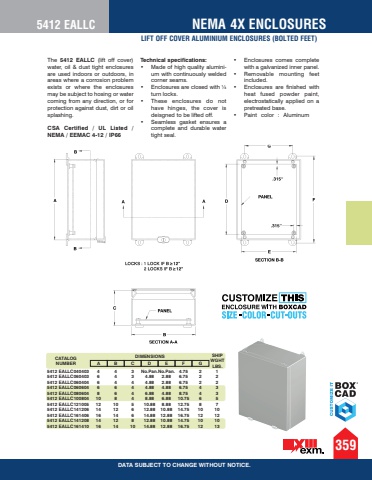

5412 EALLCThe 5412 EALLC (lift off cover) water, oil & dust tight enclosures are used indoors or outdoors, in areas where a corrosion problem exists or where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 4-12 / IP66Technical specifications:%u2022 Made of high quality aluminium with continuously weldedcorner seams.%u2022 Enclosures are closed with %u00bcturn locks.%u2022 These enclosures do nothave hinges, the cover isdeisgned to be lifted off.%u2022 Seamless gasket ensures acomplete and durable watertight seal.%u2022 Enclosures comes completewith a galvanized inner panel.%u2022 Removable mounting feetincluded.%u2022 Enclosures are finished withheat fused powder paint,electrostatically applied on apretreated base.%u2022 Paint color : AluminumLIFT OFF COVER ALUMINIUM ENCLOSURES (BOLTED FEET)359DATA SUBJECT TO CHANGE WITHOUT NOTICE.NEMA 4X ENCLOSURESA B C D E F GDIMENSIONS5412 EALLC040403 4 4 3 No.Pan.No.Pan. 4.75 2 1 5412 EALLC060403 6 4 3 4.88 2.88 6.75 2 2 5412 EALLC060404 6 4 4 4.88 2.88 6.75 2 2 5412 EALLC060604 6 6 4 4.88 4.88 6.75 4 3 5412 EALLC080604 8 6 4 6.88 4.88 8.75 4 3 5412 EALLC100804 10 8 4 8.88 6.88 10.75 6 5 5412 EALLC121005 12 10 5 10.88 8.88 12.75 8 7 5412 EALLC141206 14 12 6 12.88 10.88 14.75 10 10 5412 EALLC161406 16 14 6 14.88 12.88 16.75 12 12 5412 EALLC141208 14 12 8 12.88 10.88 14.75 10 10 5412 EALLC161410 16 14 10 14.88 12.88 16.75 12 13 CATALOG NUMBERSHIP WGHT LBS.
