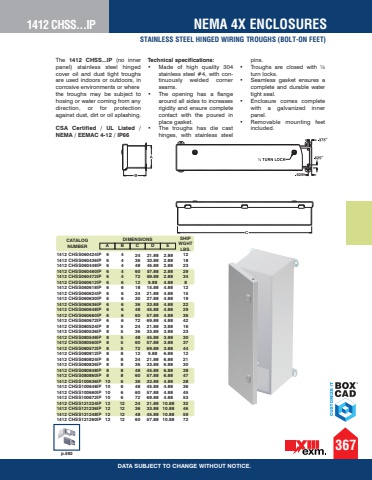

%u201d%u201d%u201dp.592The 1412 CHSS...IP (no inner panel) stainless steel hinged cover oil and dust tight troughs are used indoors or outdoors, in corrosive environments or where the troughs may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 4-12 / IP66Technical specifications:%u2022 Made of high quality 304stainless steel #4, with continuously welded cornerseams.%u2022 The opening has a flangearound all sides to increasesrigidity and ensure completecontact with the poured inplace gasket.%u2022 The troughs has die casthinges, with stainless steelpins. %u2022 Troughs are closed with %u00bcturn locks.%u2022 Seamless gasket ensures acomplete and durable watertight seal.%u2022 Enclosure comes completewith a galvanized innerpanel.%u2022 Removable mounting feetincluded.STAINLESS STEEL HINGED WIRING TROUGHS (BOLT-ON FEET)1412 CHSS...IPDATA SUBJECT TO CHANGE WITHOUT NOTICE.NEMA 4X ENCLOSURES367A B C D EDIMENSIONS1412 CHSS060424IP 6 4 24 21.88 2.88 1412 CHSS060436IP 6 4 36 33.88 2.88 18 1412 CHSS060448IP 6 4 48 45.88 2.88 23 1412 CHSS060460IP 6 4 60 57.88 2.88 29 1412 CHSS060472IP 6 4 72 69.88 2.88 34 1412 CHSS060612IP 6 6 12 9.88 4.88 8 1412 CHSS060618IP 6 6 18 15.88 4.88 12 1412 CHSS060624IP 6 6 24 21.88 4.88 15 1412 CHSS060630IP 6 6 30 27.88 4.88 19 1412 CHSS060636IP 6 6 36 33.88 4.88 22 1412 CHSS060648IP 6 6 48 45.88 4.88 29 1412 CHSS060660IP 6 6 60 57.88 4.88 36 1412 CHSS060672IP 6 6 72 69.88 4.88 42 1412 CHSS080524IP 8 5 24 21.88 3.88 16 1412 CHSS080536IP 8 5 36 33.88 3.88 23 1412 CHSS080548IP 8 5 48 45.88 3.88 30 1412 CHSS080560IP 8 5 60 57.88 3.88 37 1412 CHSS080572IP 8 5 72 69.88 3.88 44 1412 CHSS080812IP 8 8 12 9.88 6.88 12 1412 CHSS080824IP 8 8 24 21.88 6.88 21 1412 CHSS080836IP 8 8 36 33.88 6.88 30 1412 CHSS080848IP 8 8 48 45.88 6.88 38 1412 CHSS080860IP 8 8 60 57.88 6.88 47 1412 CHSS100636IP 10 6 36 33.88 4.88 28 1412 CHSS100648IP 10 6 48 45.88 4.88 36 1412 CHSS100660IP 10 6 60 57.88 4.88 45 1412 CHSS100672IP 10 6 72 69.88 4.88 53 1412 CHSS121224IP 12 12 24 21.88 10.88 32 1412 CHSS121236IP 12 12 36 33.88 10.88 46 1412 CHSS121248IP 12 12 48 45.88 10.88 59 1412 CHSS121260IP 12 12 60 57.88 10.88 72 CATALOG NUMBERSHIP WGHT LBS.12
