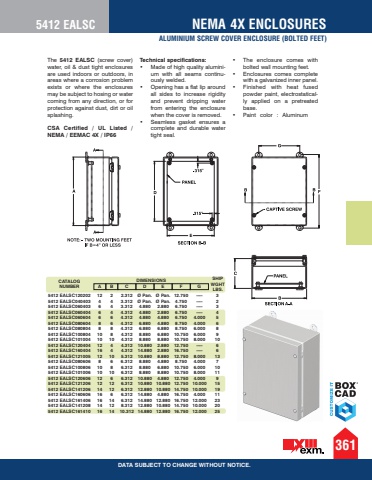

5412 EALSCALUMINIUM SCREW COVER ENCLOSURE (BOLTED FEET)The 5412 EALSC (screw cover) water, oil & dust tight enclosures are used indoors or outdoors, in areas where a corrosion problem exists or where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 4X / IP66 Technical specifications:%u2022 Made of high quality aluminium with all seams continuously welded.%u2022 Opening has a flat lip aroundall sides to increase rigidityand prevent dripping waterfrom entering the enclosurewhen the cover is removed.%u2022 Seamless gasket ensures acomplete and durable watertight seal.%u2022 The enclosure comes withbolted wall mounting feet.%u2022 Enclosures comes completewith a galvanized inner panel.%u2022 Finished with heat fusedpowder paint, electrostatically applied on a pretreatedbase.%u2022 Paint color : Aluminum%u201d%u201d361DATA SUBJECT TO CHANGE WITHOUT NOTICE.NEMA 4X ENCLOSURESCATALOG NUMBER A B C D E F GDIMENSIONS SHIP WGHT LBS.5412 EALSC120202 12 2 2.312 %u00d8 Pan. %u00d8 Pan. 12.750 ---- 3 5412 EALSC040403 4 4 3.312 %u00d8 Pan. %u00d8 Pan. 4.750 ---- 2 5412 EALSC060403 6 4 3.312 4.880 2.880 6.750 ---- 3 5412 EALSC060404 6 4 4.312 4.880 2.880 6.750 ---- 4 5412 EALSC060604 6 6 4.312 4.880 4.880 6.750 4.000 5 5412 EALSC080604 8 6 4.312 6.880 4.880 8.750 4.000 6 5412 EALSC080804 8 8 4.312 6.880 6.880 8.750 6.000 8 5412 EALSC100804 10 8 4.312 8.880 6.880 10.750 6.000 9 5412 EALSC101004 10 10 4.312 8.880 8.880 10.750 8.000 10 5412 EALSC120404 12 4 4.312 10.880 2.880 12.750 ---- 6 5412 EALSC160404 16 4 4.312 14.880 2.880 16.750 ---- 6 5412 EALSC121005 12 10 5.312 10.880 8.880 12.750 8.000 13 5412 EALSC080606 8 6 6.312 8.880 4.880 8.750 4.000 7 5412 EALSC100806 10 8 6.312 8.880 6.880 10.750 6.000 10 5412 EALSC101006 10 10 6.312 8.880 8.880 10.750 8.000 11 5412 EALSC120606 12 6 6.312 10.880 4.880 12.750 4.000 9 5412 EALSC121206 12 12 6.312 10.880 10.880 12.750 10.000 15 5412 EALSC141206 14 12 6.312 12.880 10.880 14.750 10.000 19 5412 EALSC160606 16 6 6.312 14.880 4.880 16.750 4.000 11 5412 EALSC161406 16 14 6.312 14.880 12.880 16.750 12.000 23 5412 EALSC141208 14 12 8.312 12.880 10.880 14.750 10.000 20 5412 EALSC161410 16 14 10.312 14.880 12.880 16.750 12.000 25
