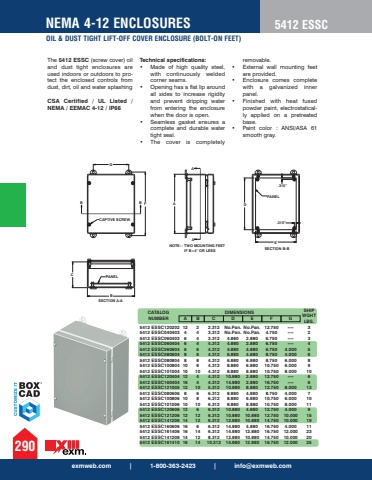

The 5412 ESSC (screw cover) oil and dust tight enclosures are used indoors or outdoors to protect the enclosed controls from dust, dirt, oil and water splashing CSA Certified / UL Listed / NEMA / EEMAC 4-12 / IP66Technical specifications: %u2022 Made of high quality steel,with continuously weldedcorner seams.%u2022 Opening has a flat lip aroundall sides to increase rigidityand prevent dripping waterfrom entering the enclosurewhen the door is open.%u2022 Seamless gasket ensures acomplete and durable watertight seal.%u2022 The cover is completelyremovable. %u2022 External wall mounting feetare provided.%u2022 Enclosure comes completewith a galvanized innerpanel.%u2022 Finished with heat fusedpowder paint, electrostatically applied on a pretreatedbase.%u2022 Paint color : ANSI/ASA 61smooth gray.SECTION B-BE.315%u201dPANELD.315%u201dANOTE: - TWO MOUNTING FEETIF B=4%u201d OR LESSAAGB B FCAPTIVE SCREWCBSECTION A-APANELexmweb.com | 1-800-363-2423 | [email protected] B C D E F GDIMENSIONS5412 ESSC120202 12 2 2.312 No.Pan. No.Pan. 12.750 ---- 3 5412 ESSC040403 4 4 3.312 No.Pan. No.Pan. 4.750 ---- 2 5412 ESSC060403 6 4 3.312 4.880 2.880 6.750 ---- 3 5412 ESSC060404 6 4 4.312 4.880 2.880 6.750 ---- 4 5412 ESSC060604 6 6 4.312 4.880 4.880 6.750 4.000 5 5412 ESSC080604 8 6 4.312 6.880 4.880 8.750 4.000 6 5412 ESSC080804 8 8 4.312 6.880 6.880 8.750 6.000 8 5412 ESSC100804 10 8 4.312 8.880 6.880 10.750 6.000 9 5412 ESSC101004 10 10 4.312 8.880 8.880 10.750 8.000 10 5412 ESSC120404 12 4 4.312 10.880 2.880 12.750 ---- 6 5412 ESSC160404 16 4 4.312 14.880 2.880 16.750 ---- 6 5412 ESSC121005 12 10 5.312 10.880 8.880 12.750 8.000 13 5412 ESSC080606 8 6 6.312 8.880 4.880 8.750 4.000 7 5412 ESSC100806 10 8 6.312 8.880 6.880 10.750 6.000 10 5412 ESSC101006 10 10 6.312 8.880 8.880 10.750 8.000 11 5412 ESSC120606 12 6 6.312 10.880 4.880 12.750 4.000 9 5412 ESSC121206 12 12 6.312 10.880 10.880 12.750 10.000 15 5412 ESSC141206 14 12 6.312 12.880 10.880 14.750 10.000 19 5412 ESSC160606 16 6 6.312 14.880 4.880 16.750 4.000 11 5412 ESSC161406 16 14 6.312 14.880 12.880 16.750 12.000 23 5412 ESSC141208 14 12 8.312 12.880 10.880 14.750 10.000 20 5412 ESSC161410 16 14 10.312 14.880 12.880 16.750 12.000 25 CATALOG NUMBERSHIP WGHT LBS.NEMA 4-12 ENCLOSURESOIL & DUST TIGHT LIFT-OFF COVER ENCLOSURE (BOLT-ON FEET)5412 ESSC
