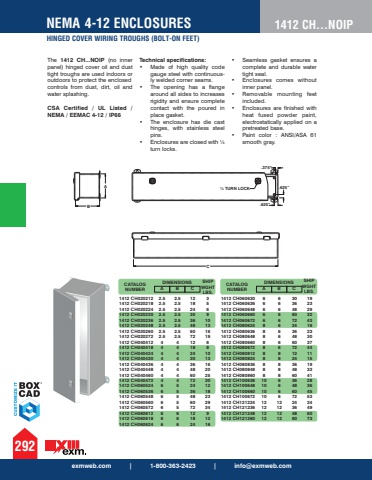

                                    AB%u00bc TURN LOCK.375%u201d.625%u201d.625%u201dCThe 1412 CH...NOIP (no inner panel) hinged cover oil and dust tight troughs are used indoors or outdoors to protect the enclosed controls from dust, dirt, oil and water splashing. CSA Certified / UL Listed / NEMA / EEMAC 4-12 / IP66Technical specifications: %u2022 Made of high quality codegauge steel with continuously welded corner seams.%u2022 The opening has a flangearound all sides to increasesrigidity and ensure completecontact with the poured inplace gasket.%u2022 The enclosure has die casthinges, with stainless steelpins.%u2022 Enclosures are closed with %u00bcturn locks.%u2022 Seamless gasket ensures acomplete and durable watertight seal.%u2022 Enclosures comes withoutinner panel.%u2022 Removable mounting feetincluded.%u2022 Enclosures are finished withheat fused powder paint,electrostatically applied on apretreated base.%u2022 Paint color : ANSI/ASA 61smooth gray.exmweb.com | 1-800-363-2423 | [email protected] B CDIMENSIONS1412 CH020212 2.5 2.5 12 3 1412 CH020218 2.5 2.5 18 5 1412 CH020224 2.5 2.5 24 6 1412 CH020230 2.5 2.5 30 9 1412 CH020236 2.5 2.5 36 10 1412 CH020248 2.5 2.5 48 13 1412 CH020260 2.5 2.5 60 16 1412 CH020272 2.5 2.5 72 19 1412 CH040412 4 4 12 6 1412 CH040418 4 4 18 8 1412 CH040424 4 4 24 10 1412 CH040430 4 4 30 13 1412 CH040436 4 4 36 16 1412 CH040448 4 4 48 20 1412 CH040460 4 4 60 25 1412 CH040472 4 4 72 30 1412 CH060524 6 5 24 12 1412 CH060536 6 5 36 18 1412 CH060548 6 5 48 23 1412 CH060560 6 5 60 29 1412 CH060572 6 5 72 34 1412 CH060612 6 6 12 9 1412 CH060618 6 6 18 12 1412 CH060624 6 6 24 16A B CDIMENSIONS1412 CH060630 6 6 30 19 1412 CH060636 6 6 36 23 1412 CH060648 6 6 48 29 1412 CH060660 6 6 60 32 1412 CH060672 6 6 72 43 1412 CH080624 8 6 24 16 1412 CH080636 8 6 36 23 1412 CH080648 8 6 48 30 1412 CH080660 8 6 60 37 1412 CH080672 8 6 72 44 1412 CH080812 8 8 12 11 1412 CH080824 8 8 24 15 1412 CH080836 8 8 36 19 1412 CH080848 8 8 48 33 1412 CH080860 8 8 60 41 1412 CH100636 10 6 36 281412 CH100648 10 6 48 36 1412 CH100660 10 6 60 45 1412 CH100672 10 6 72 53 1412 CH121224 12 12 24 34 1412 CH121236 12 12 36 49 1412 CH121248 12 12 48 60 1412 CH121260 12 12 60 73 CATALOG NUMBERSHIP WGHT LBS.CATALOG NUMBERSHIP WGHT LBS.NEMA 4-12 ENCLOSURESHINGED COVER WIRING TROUGHS (BOLT-ON FEET)1412 CH...NOIP
