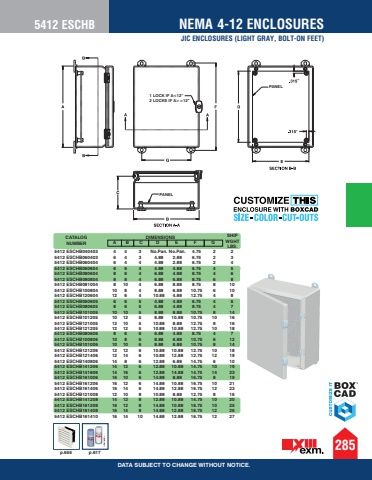

5412 ESCHB NEMA 4-12 ENCLOSURES1 LOCK IF A<12%u201d2 LOCKS IF A>=12%u201dPANELPANEL%u201d%u201dCATALOG NUMBER A B C D E F GDIMENSIONS SHIP WGHT LBS.5412 ESCHB040403 4 4 3 No.Pan. No.Pan. 4.75 2 2 5412 ESCHB060403 6 4 3 4.88 2.88 6.75 2 3 5412 ESCHB060404 6 4 4 4.88 2.88 6.75 2 4 5412 ESCHB060604 6 6 4 4.88 4.88 6.75 4 5 5412 ESCHB080604 8 6 4 6.88 4.88 8.75 4 6 5412 ESCHB080804 8 8 4 6.88 6.88 8.75 6 8 5412 ESCHB081004 8 10 4 6.88 8.88 8.75 8 10 5412 ESCHB100804 10 8 4 8.88 6.88 10.75 6 10 5412 ESCHB120604 12 6 4 10.88 4.88 12.75 4 8 5412 ESCHB060605 6 6 5 4.88 4.88 6.75 4 6 5412 ESCHB080605 8 6 5 6.88 4.88 8.75 4 7 5412 ESCHB101005 10 10 5 8.88 8.88 10.75 8 14 5412 ESCHB101205 10 12 5 8.88 10.88 10.75 10 16 5412 ESCHB121005 12 10 5 10.88 8.88 12.75 8 16 5412 ESCHB121205 12 12 5 10.88 10.88 12.75 10 18 5412 ESCHB080606 8 6 6 6.88 4.88 8.75 4 7 5412 ESCHB100806 10 8 6 8.88 6.88 10.75 6 12 5412 ESCHB101006 10 10 6 8.88 8.88 10.75 8 14 5412 ESCHB121206 12 12 6 10.88 10.88 12.75 10 18 5412 ESCHB121406 12 14 6 10.88 12.88 12.75 12 19 5412 ESCHB140806 14 8 6 12.88 6.88 14.75 6 10 5412 ESCHB141206 14 12 6 12.88 10.88 14.75 10 19 5412 ESCHB141606 14 16 6 12.88 14.88 14.75 14 23 5412 ESCHB161006 16 10 6 14.88 8.88 16.75 8 19 5412 ESCHB161206 16 12 6 14.88 10.88 16.75 10 21 5412 ESCHB161406 16 14 6 14.88 12.88 16.75 12 23 5412 ESCHB121008 12 10 8 10.88 8.88 12.75 8 16 5412 ESCHB141208 14 12 8 12.88 10.88 14.75 10 20 5412 ESCHB161208 16 12 8 14.88 10.88 16.75 10 25 5412 ESCHB161408 16 14 8 14.88 12.88 16.75 12 26 5412 ESCHB161410 16 14 10 14.88 12.88 16.75 12 27JIC ENCLOSURES (LIGHT GRAY, BOLT-ON FEET)285DATA SUBJECT TO CHANGE WITHOUT NOTICE.p.655 p.617
