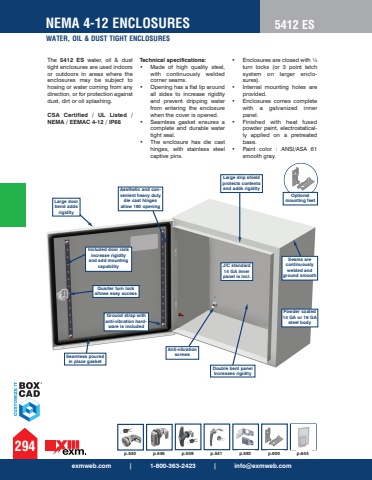

NEMA 4-12 ENCLOSURESWATER, OIL & DUST TIGHT ENCLOSURES5412 ESThe 5412 ES water, oil & dust tight enclosures are used indoors or outdoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 4-12 / IP66 Technical specifications:%u2022 Made of high quality steel, with continuously welded corner seams. %u2022 Opening has a flat lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the cover is opened. %u2022 Seamless gasket ensures a complete and durable water tight seal. %u2022 The enclosure has die cast hinges, with stainless steel captive pins. %u2022 Enclosures are closed with %u00bc turn locks (or 3 point latch system on larger enclosures). %u2022 Internal mounting holes are provided. %u2022 Enclosures comes complete with a galvanized inner panel. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : ANSI/ASA 61 smooth gray. Optional mounting feetPowder coated 14 GA or 16 GA steel bodyJIC standard 14 GA inner panel is incl.Anti-vibration Seamless poured screwsin place gasketGround strap with anti-vibration hardware is includedQuarter turn lock allows easy accessIncluded door rails increase rigidity and add mounting capabilityLarge drip shield protects contents Aesthetic and con- and adds rigidityvenient heavy duty die cast hinges allow 180 openingDouble bent panel increases rigidityLarge door bend adds rigiditySeams are continuously welded and ground smoothexmweb.com | 1-800-363-2423 | [email protected] p.546 p.508 p.541 p.592 p.600 p.644
