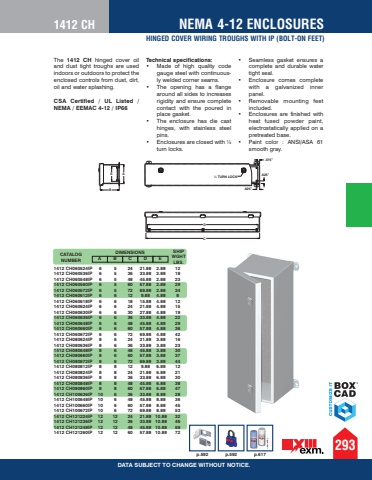

DE ABC%u00bc TURN LOCK.375%u201d.625%u201d.625%u201dThe 1412 CH hinged cover oil and dust tight troughs are used indoors or outdoors to protect the enclosed controls from dust, dirt, oil and water splashing. CSA Certified / UL Listed / NEMA / EEMAC 4-12 / IP66Technical specifications: %u2022 Made of high quality code gauge steel with continuously welded corner seams. %u2022 The opening has a flange around all sides to increases rigidity and ensure complete contact with the poured in place gasket. %u2022 The enclosure has die cast hinges, with stainless steel pins. %u2022 Enclosures are closed with %u00bc turn locks. %u2022 Seamless gasket ensures a complete and durable water tight seal. %u2022 Enclosure comes complete with a galvanized inner panel. %u2022 Removable mounting feet included. %u2022 Enclosures are finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : ANSI/ASA 61 smooth gray.p.592 p.592 p.617293DATA SUBJECT TO CHANGE WITHOUT NOTICE.A B C D EDIMENSIONS1412 CH060524IP 6 5 24 21.88 2.88 12 1412 CH060536IP 6 5 36 33.88 2.88 18 1412 CH060548IP 6 5 48 45.88 2.88 23 1412 CH060560IP 6 5 60 57.88 2.88 29 1412 CH060572IP 6 5 72 69.88 2.88 34 1412 CH060612IP 6 6 12 9.88 4.88 8 1412 CH060618IP 6 6 18 15.88 4.88 12 1412 CH060624IP 6 6 24 21.88 4.88 15 1412 CH060630IP 6 6 30 27.88 4.88 19 1412 CH060636IP 6 6 36 33.88 4.88 22 1412 CH060648IP 6 6 48 45.88 4.88 29 1412 CH060660IP 6 6 60 57.88 4.88 36 1412 CH060672IP 6 6 72 69.88 4.88 42 1412 CH080624IP 8 6 24 21.88 3.88 16 1412 CH080636IP 8 6 36 33.88 3.88 23 1412 CH080648IP 8 6 48 45.88 3.88 30 1412 CH080660IP 8 6 60 57.88 3.88 37 1412 CH080672IP 8 6 72 69.88 3.88 44 1412 CH080812IP 8 8 12 9.88 6.88 12 1412 CH080824IP 8 8 24 21.88 6.88 21 1412 CH080836IP 8 8 36 33.88 6.88 30 1412 CH080848IP 8 8 48 45.88 6.88 38 1412 CH080860IP 8 8 60 57.88 6.88 47 1412 CH100636IP 10 6 36 33.88 8.88 28 1412 CH100648IP 10 6 48 45.88 8.88 36 1412 CH100660IP 10 6 60 57.88 8.88 45 1412 CH100672IP 10 6 72 69.88 8.88 53 1412 CH121224IP 12 12 24 21.88 10.88 32 1412 CH121236IP 12 12 36 33.88 10.88 46 1412 CH121248IP 12 12 48 45.88 10.88 59 1412 CH121260IP 12 12 60 57.88 10.88 72 CATALOG NUMBERSHIP WGHT LBS.1412 CH NEMA 4-12 ENCLOSURESHINGED COVER WIRING TROUGHS WITH IP (BOLT-ON FEET)
