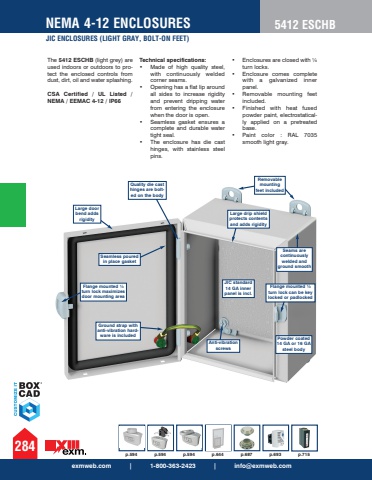

NEMA 4-12 ENCLOSURESJIC ENCLOSURES (LIGHT GRAY, BOLT-ON FEET)5412 ESCHBThe 5412 ESCHB (light grey) are used indoors or outdoors to protect the enclosed controls from dust, dirt, oil and water splashing. CSA Certified / UL Listed / NEMA / EEMAC 4-12 / IP66Technical specifications: %u2022 Made of high quality steel,with continuously weldedcorner seams.%u2022 Opening has a flat lip aroundall sides to increase rigidityand prevent dripping waterfrom entering the enclosurewhen the door is open.%u2022 Seamless gasket ensures acomplete and durable watertight seal.%u2022 The enclosure has die casthinges, with stainless steelpins.%u2022 Enclosures are closed with %u00bcturn locks.%u2022 Enclosure comes completewith a galvanized innerpanel.%u2022 Removable mounting feetincluded.%u2022 Finished with heat fusedpowder paint, electrostatically applied on a pretreatedbase.%u2022 Paint color : RAL 7035smooth light gray.Powder coated 14 GA or 16 GA steel bodyJIC standard 14 GA inner panel is incl.Anti-vibration screwsSeamless poured in place gasketRemovable mounting feet includedGround strap with anti-vibration hardware is includedFlange mounted %u00bc turn lock maximizes door mounting areaFlange mounted %u00bc turn lock can be key locked or padlockedLarge drip shield protects contents and adds rigidityQuality die cast hinges are bolted on the bodyLarge door bend adds rigiditySeams are continuously welded and ground smoothexmweb.com | 1-800-363-2423 | [email protected] p.594 p.594 p.644 p.687 p.693 p.715
