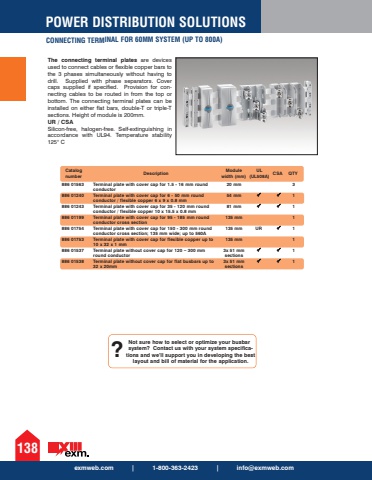

exmweb.com | 1-800-363-2423 | [email protected] DISTRIBUTION SOLUTIONSCONNECTING TERMINAL FOR 60MM SYSTEM (UP TO 800A)138886 01563 886 01240 886 01243 886 01199 886 01754 886 01753 886 01537 886 01538Terminal plate with cover cap for 1.5 - 16 mm round conductor Terminal plate with cover cap for 6 - 50 mm round conductor / flexible copper 6 x 9 x 0.8 mm Terminal plate with cover cap for 35 - 120 mm round conductor / flexible copper 10 x 15.5 x 0.8 mm Terminal plate with cover cap for 95 - 185 mm round conductor cross section Terminal plate with cover cap for 150 - 300 mm round conductor cross section; 135 mm wide; up to 560A Terminal plate with cover cap for flexible copper up to 10 x 32 x 1 mm Terminal plate without cover cap for 120 %u2013 300 mm round conductor Terminal plate without cover cap for flat busbars up to 32 x 20mm20 mm 54 mm 81 mm 135 mm 135 mm 135 mm 3x 51 mm sections 3x 51 mm sections %uf050%uf050%uf050%uf050%uf050%uf050%uf050UR %uf050%uf050Catalog number Description Module width (mm) CSA UL (UL508A) The connecting terminal plates are devices used to connect cables or flexible copper bars to the 3 phases simultaneously without having to drill. Supplied with phase separators. Cover caps supplied if specified. Provision for connecting cables to be routed in from the top or bottom. The connecting terminal plates can be installed on either flat bars, double-T or triple-T sections. Height of module is 200mm. UR / CSASilicon-free, halogen-free. Self-extinguishing in accordance with UL94. Temperature stability 125%u00b0 C Not sure how to select or optimize your busbar system? Contact us with your system specifications and we%u2019ll support you in developing the best layout and bill of material for the application.?QTY3 1 1 1 1 1 1 1
