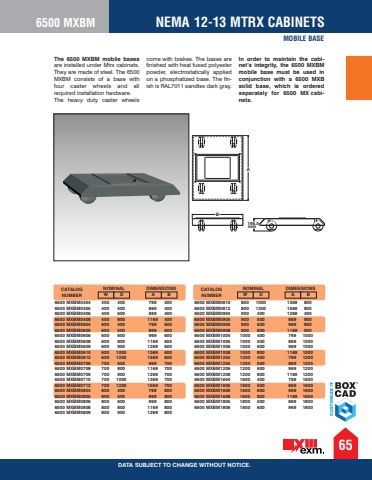

MOBILE BASE6500 MXBM65NEMA 12-13 MTRX CABINETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 6500 MXBM mobile bases are installed under Mtrx cabinets. They are made of steel. The 6500 MXBM consists of a base with four caster wheels and all required installation hardware. The heavy duty caster wheels come with brakes. The bases are finished with heat fused polyester powder, electrostatically applied on a phosphatized base. The finish is RAL7011 sandtex dark gray. In order to maintain the cabinet%u2019s integrity, the 6500 MXBM mobile base must be used in conjunction with a 6500 MXB solid base, which is ordered separately for 6500 MX cabinets.AB146.5mm6500 MXBM0404 400 400 769 400 6500 MXBM0405 400 500 869 400 6500 MXBM0406 400 600 969 400 6500 MXBM0408 400 800 1169 400 6500 MXBM0604 600 400 769 600 6500 MXBM0605 600 500 869 600 6500 MXBM0606 600 600 969 600 6500 MXBM0608 600 800 1169 600 6500 MXBM0609 600 900 1269 600 6500 MXBM0610 600 1000 1369 600 6500 MXBM0612 600 1200 1569 600 6500 MXBM0706 700 600 969 700 6500 MXBM0708 700 800 1169 700 6500 MXBM0709 700 900 1269 700 6500 MXBM0710 700 1000 1369 700 6500 MXBM0712 700 1200 1569 700 6500 MXBM0804 800 400 769 800 6500 MXBM0805 800 500 869 800 6500 MXBM0806 800 600 969 800 6500 MXBM0808 800 800 1169 800 6500 MXBM0809 800 900 1269 800 6500 MXBM0810 800 1000 1369 800 6500 MXBM0812 800 1200 1569 800 6500 MXBM0904 900 400 1269 400 6500 MXBM0905 900 500 869 900 6500 MXBM0906 900 600 969 900 6500 MXBM0908 900 800 1169 900 6500 MXBM1004 1000 400 769 1000 6500 MXBM1005 1000 500 869 1000 6500 MXBM1006 1000 600 969 1000 6500 MXBM1008 1000 800 1169 1000 6500 MXBM1204 1200 400 769 1200 6500 MXBM1205 1200 500 869 1200 6500 MXBM1206 1200 600 969 1200 6500 MXBM1208 1200 800 1169 1200 6500 MXBM1604 1600 400 769 1600 6500 MXBM1605 1600 500 869 1600 6500 MXBM1606 1600 600 969 1600 6500 MXBM1608 1600 800 1169 1600 6500 MXBM1805 1800 500 869 1800 6500 MXBM1806 1800 600 969 1800CATALOG NUMBERDIMENSIONSW D A BNOMINAL DIMENSIONSW D A BCATALOG NOMINALNUMBER
