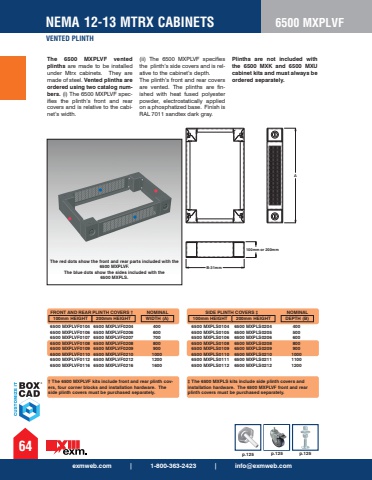

exmweb.com | 1-800-363-2423 | [email protected] 12-13 MTRX CABINETSVENTED PLINTH646500 MXPLVFp.125 p.125 p.125The 6500 MXPLVF vented plinths are made to be installed under Mtrx cabinets. They are made of steel. Vented plinths are ordered using two catalog numbers. (i) The 6500 MXPLVF specifies the plinth%u2019s front and rear covers and is relative to the cabinet%u2019s width. (ii) The 6500 MXPLVF specifies the plinth%u2019s side covers and is relative to the cabinet%u2019s depth. The plinth%u2019s front and rear covers are vented. The plinths are finished with heat fused polyester powder, electrostatically applied on a phosphatized base. Finish is RAL 7011 sandtex dark gray. Plinths are not included with the 6500 MXK and 6500 MXU cabinet kits and must always be ordered separately.AB-31mm100mm or 200mm6500 MXPLVF0104 6500 MXPLVF0204 400 6500 MXPLVF0106 6500 MXPLVF0206 600 6500 MXPLVF0107 6500 MXPLVF0207 700 6500 MXPLVF0108 6500 MXPLVF0208 800 6500 MXPLVF0109 6500 MXPLVF0209 900 6500 MXPLVF0110 6500 MXPLVF0210 1000 6500 MXPLVF0112 6500 MXPLVF0212 1200 6500 MXPLVF0116 6500 MXPLVF0216 1600 %u2020 The 6500 MXPLVF kits include front and rear plinth covers, four corner blocks and installation hardware. The side plinth covers must be purchased separately.6500 MXPLS0104 6500 MXPLS0204 400 6500 MXPLS0105 6500 MXPLS0205 500 6500 MXPLS0106 6500 MXPLS0206 600 6500 MXPLS0108 6500 MXPLS0208 800 6500 MXPLS0109 6500 MXPLS0209 900 6500 MXPLS0110 6500 MXPLS0210 1000 6500 MXPLS0111 6500 MXPLS0211 1100 6500 MXPLS0112 6500 MXPLS0212 1200 %u2021 The 6500 MXPLS kits include side plinth covers and installation hardware. The 6500 MXPLVF front and rear plinth covers must be purchased separately.WIDTH (A)NOMINAL100mm HEIGHT 200mm HEIGHTFRONT AND REAR PLINTH COVERS %u2020DEPTH (B)NOMINAL100mm HEIGHT 200mm HEIGHTSIDE PLINTH COVERS %u2021The red dots show the front and rear parts included with the 6500 MXPLVF. The blue dots show the sides included with the 6500 MXPLS.
