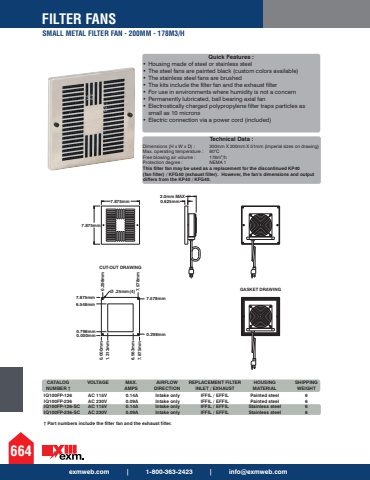

exmweb.com | 1-800-363-2423 | [email protected] FANSSMALL METAL FILTER FAN - 200MM - 178M3/H6647.875mm7.875mm 0.625mm2.0mm MAX0.000mm0.798mm 0.298mm6.548mm7.875mm0.000mm 1.313mm 6.563mm 7.875mm7.578mm0.298mm%u00d8 .25mm(4) 7.578mmGASKET DRAWINGCUT-OUT DRAWINGQuick Features : %u2022 Housing made of steel or stainless steel %u2022 The steel fans are painted black (custom colors available) %u2022 The stainless steel fans are brushed %u2022 The kits include the filter fan and the exhaust filter %u2022 For use in environments where humidity is not a concern %u2022 Permanently lubricated, ball bearing axial fan %u2022 Electrostically charged polypropylene filter traps particles as small as 10 microns %u2022 Electric connection via a power cord (included) Technical Data : Dimensions (H x W x D) : 200mm X 200mm X 51mm (imperial sizes on drawing) Max. operating temperature : 80%u00b0C Free blowing air volume : 178m3/h Protection degree : NEMA 1 This filter fan may be used as a replacement for the discontinued KP40 (fan filter) / KFG40 (exhaust filter). However, the fan%u2019s dimensions and output differs from the KP40 / KFG40.CATALOG VOLTAGE MAX. AIRFLOW REPLACEMENT FILTER HOUSING SHIPPING NUMBER %u2020 AMPS DIRECTION INLET / EXHAUST MATERIAL WEIGHTIQ100FP-126 AC 115V 0.14A Intake only IFFIL / EFFIL Painted steel 6 IQ100FP-236 AC 230V 0.09A Intake only IFFIL / EFFIL Painted steel 6 IQ100FP-126-SC AC 115V 0.14A Intake only IFFIL / EFFIL Stainless steel 6 IQ100FP-236-SC AC 230V 0.09A Intake only IFFIL / EFFIL Stainless steel 6 %u2020 Part numbers include the filter fan and the exhaust filter.
