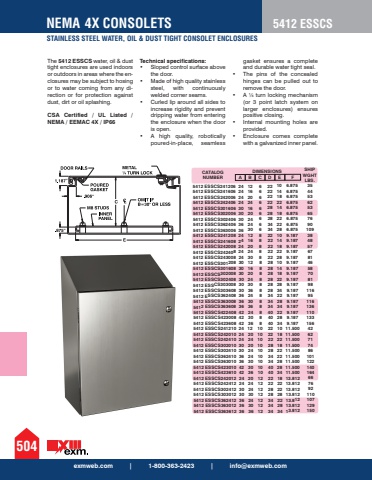

exmweb.com | 1-800-363-2423 | [email protected] 4X CONSOLETSSTAINLESS STEEL WATER, OIL & DUST TIGHT CONSOLET ENCLOSURES5045412 ESSCSThe 5412 ESSCS water, oil & dust tight enclosures are used indoors or outdoors in areas where the enclosures may be subject to hosing or to water coming from any direction or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 4X / IP66Technical specifications: %u2022 Sloped control surface above the door. %u2022 Made of high quality stainless steel, with continuously welded corner seams. %u2022 Curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. %u2022 A high quality, robotically poured-in-place, seamless gasket ensures a complete and durable water tight seal. %u2022 The pins of the concealed hinges can be pulled out to remove the door. %u2022 A %u00bc turn locking mechanism (or 3 point latch system on larger enclosures) ensures positive closing. %u2022 Internal mounting holes are provided. %u2022 Enclosure comes complete with a galvanized inner panel. CATALOG NUMBERSHIP WGHT LBS.5412 ESSCS241206 24 12 6 22 10 6.875 35 5412 ESSCS241606 24 16 6 22 14 6.875 44 5412 ESSCS242006 24 20 6 22 18 6.875 53 5412 ESSCS242406 24 24 6 22 22 6.875 62 5412 ESSCS301606 30 16 6 28 14 6.875 53 5412 ESSCS302006 30 20 6 28 18 6.875 65 5412 ESSCS302406 30 24 6 28 22 6.875 76 5412 ESSCS362406 36 24 6 34 22 6.875 90 5412 ESSCS363006 36 30 6 34 28 6.875 109 5412 ESSCS241208 24 12 8 22 10 9.187 38 5412 ESSCS241608 24 16 8 22 14 9.187 48 5412 ESSCS242008 24 20 8 22 18 9.187 57 5412 ESSCS242408 24 24 8 22 22 9.187 67 5412 ESSCS243008 24 30 8 22 28 9.187 81 5412 ESSCS301208 30 12 8 28 10 9.187 46 5412 ESSCS301608 30 16 8 28 14 9.187 58 5412 ESSCS302008 30 20 8 28 18 9.187 70 5412 ESSCS302408 30 24 8 28 22 9.187 81 5412 ESSCS303008 30 30 8 28 28 9.187 98 5412 ESSCS303608 30 36 8 28 34 9.187 116 5412 ESSCS362408 36 24 8 34 22 9.187 95 5412 ESSCS363008 36 30 8 34 28 9.187 116 5412 ESSCS363608 36 36 8 34 34 9.187 136 5412 ESSCS422408 42 24 8 40 22 9.187 110 5412 ESSCS423008 42 30 8 40 28 9.187 133 5412 ESSCS423608 42 36 8 40 34 9.187 156 5412 ESSCS241210 24 12 10 22 10 11.500 42 5412 ESSCS242010 24 20 10 22 18 11.500 62 5412 ESSCS242410 24 24 10 22 22 11.500 71 5412 ESSCS302010 30 20 10 28 18 11.500 74 5412 ESSCS302410 30 24 10 28 22 11.500 86 5412 ESSCS362410 36 24 10 34 22 11.500 101 5412 ESSCS363010 36 30 10 34 28 11.500 122 5412 ESSCS423010 42 30 10 40 28 11.500 140 5412 ESSCS423610 42 36 10 40 34 11.500 164 5412 ESSCS242012 24 20 12 22 18 13.812 66 5412 ESSCS242412 24 24 12 22 22 13.812 76 5412 ESSCS302412 30 24 12 28 22 13.812 92 5412 ESSCS303012 30 30 12 28 28 13.812 110 5412 ESSCS362412 36 24 12 34 22 13.812 107 5412 ESSCS363012 36 30 12 34 28 13.812 129 5412 ESSCS363612 36 36 12 34 34 13.812 150 %u201d%u201d%u201d%u201dA B C D E FDIMENSIONS
