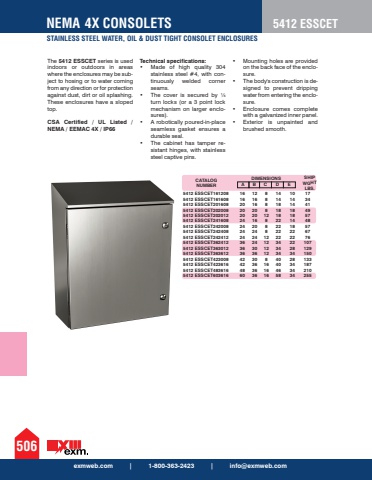

exmweb.com | 1-800-363-2423 | [email protected] 4X CONSOLETSSTAINLESS STEEL WATER, OIL & DUST TIGHT CONSOLET ENCLOSURES5065412 ESSCETThe 5412 ESSCET series is used indoors or outdoors in areas where the enclosures may be subject to hosing or to water coming from any direction or for protection against dust, dirt or oil splashing. These enclosures have a sloped top. CSA Certified / UL Listed / NEMA / EEMAC 4X / IP66Technical specifications: %u2022 Made of high quality 304 stainless steel #4, with continuously welded corner seams. %u2022 The cover is secured by %u00bc turn locks (or a 3 point lock mechanism on larger enclosures). %u2022 A robotically poured-in-place seamless gasket ensures a durable seal. %u2022 The cabinet has tamper resistant hinges, with stainless steel captive pins. %u2022 Mounting holes are provided on the back face of the enclosure. %u2022 The body's construction is designed to prevent dripping water from entering the enclosure. %u2022 Enclosure comes complete with a galvanized inner panel. %u2022 Exterior is unpainted and brushed smooth.A B C D EDIMENSIONS5412 ESSCET161208 16 12 8 14 10 17 5412 ESSCET161608 16 16 8 14 14 34 5412 ESSCET201608 20 16 8 18 14 41 5412 ESSCET202008 20 20 8 18 18 49 5412 ESSCET202012 20 20 12 18 18 57 5412 ESSCET241608 24 16 8 22 14 48 5412 ESSCET242008 24 20 8 22 18 57 5412 ESSCET242408 24 24 8 22 22 67 5412 ESSCET242412 24 24 12 22 22 76 5412 ESSCET362412 36 24 12 34 22 107 5412 ESSCET363012 36 30 12 34 28 129 5412 ESSCET363612 36 36 12 34 34 150 5412 ESSCET423008 42 30 8 40 28 133 5412 ESSCET423616 42 36 16 40 34 187 5412 ESSCET483616 48 36 16 46 34 210 5412 ESSCET603616 60 36 16 58 34 255CATALOG NUMBERSHIP WGHT LBS.
