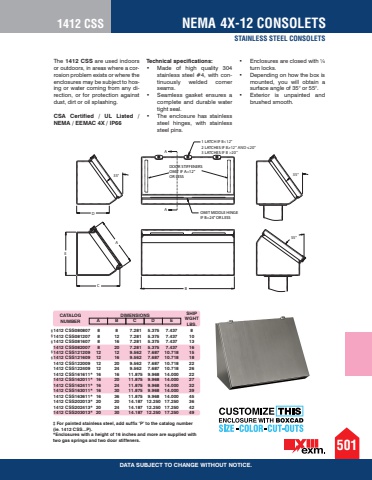

1412 CSS501NEMA 4X-12 CONSOLETSSTAINLESS STEEL CONSOLETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 1412 CSS are used indoors or outdoors, in areas where a corrosion problem exists or where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 4X / IP66Technical specifications:%u2022 Made of high quality 304 stainless steel #4, with continuously welded corner seams. %u2022 Seamless gasket ensures a complete and durable water tight seal. %u2022 The enclosure has stainless steel hinges, with stainless steel pins. %u2022 Enclosures are closed with %u00bc turn locks. %u2022 Depending on how the box is mounted, you will obtain a surface angle of 35%u00b0 or 55%u00b0. %u2022 Exterior is unpainted and brushed smooth. AA55%u00b035%u00b0 35%u00b0BDACEDOOR STIFFENERSOMIT IF A=12%u201d OR LESS1 LATCH IF B<12%u2019%u20192 LATCHES IF B%u226512%u2019%u2019 AND %u226420%u2019%u20193 LATCHES IF B >20%u2019%u2019OMIT MIDDLE HINGE IF B=24%u201d OR LESSCATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.1412 CSS080807 8 8 7.281 5.375 7.437 8 1412 CSS081207 8 12 7.281 5.375 7.437 10 1412 CSS081607 8 16 7.281 5.375 7.437 13 1412 CSS082007 8 20 7.281 5.375 7.437 16 1412 CSS121209 12 12 9.562 7.687 10.718 15 1412 CSS121609 12 16 9.562 7.687 10.718 18 1412 CSS122009 12 20 9.562 7.687 10.718 22 1412 CSS122409 12 24 9.562 7.687 10.718 26 1412 CSS161611* 16 16 11.875 9.968 14.000 22 1412 CSS162011* 16 20 11.875 9.968 14.000 27 1412 CSS162411* 16 24 11.875 9.968 14.000 32 1412 CSS163011* 16 30 11.875 9.968 14.000 39 1412 CSS163611* 16 36 11.875 9.968 14.000 45 1412 CSS202013* 20 20 14.187 12.250 17.250 36 1412 CSS202413* 20 24 14.187 12.250 17.250 42 1412 CSS203013* 20 30 14.187 12.250 17.250 49%u00a7 %u00a7 %u00a7 %u00a7 %u00a7%u2021 For painted stainless steel, add suffix %u2018P%u2019 to the catalog number (ie. 1412 CSS...P). *Enclosures with a height of 16 inches and more are supplied with two gas springs and two door stiffeners.
