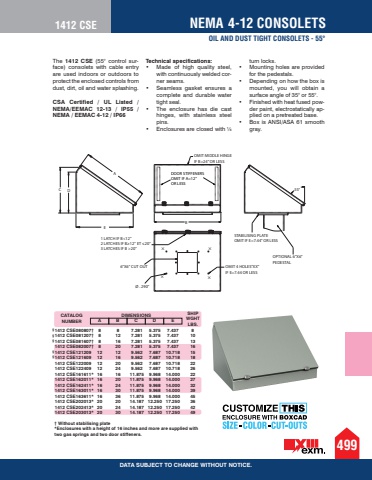

499NEMA 4-12 CONSOLETSOIL AND DUST TIGHT CONSOLETS - 55%u00b0DATA SUBJECT TO CHANGE WITHOUT NOTICE.The 1412 CSE (55%u00b0 control surface) consolets with cable entry are used indoors or outdoors to protect the enclosed controls from dust, dirt, oil and water splashing. CSA Certified / UL Listed / NEMA/EEMAC 12-13 / IP55 / NEMA / EEMAC 4-12 / IP66Technical specifications: %u2022 Made of high quality steel, with continuously welded corner seams. %u2022 Seamless gasket ensures a complete and durable water tight seal. %u2022 The enclosure has die cast hinges, with stainless steel pins. %u2022 Enclosures are closed with %u00bc turn locks. %u2022 Mounting holes are provided for the pedestals. %u2022 Depending on how the box is mounted, you will obtain a surface angle of 35%u00b0 or 55%u00b0. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Box is ANSI/ASA 61 smooth gray.DOPTIONAL 6%u201dX6%u201d PEDESTAL%u00d7%u00d7%u00d7%u00d7CAE%u00d8 . 290%u201d55%u00b0B6%u201dX6%u201d CUT OUTOMIT MIDDLE HINGE IF B=24%u201d OR LESSSTABILISING PLATEOMIT IF E=7.44%u201d OR LESSOMIT 4 HOLES%u201dXX%u201dIF E=7.44 OR LESS1 LATCH IF B<12%u2019%u20192 LATCHES IF B%u226512%u2019%u2019 ET %u226420%u2019%u20193 LATCHES IF B >20%u2019%u2019DOOR STIFFENERSOMIT IF A=12%u201d OR LESSCATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.1412 CSE080807%u2020 8 8 7.281 5.375 7.437 8 1412 CSE081207%u2020 8 12 7.281 5.375 7.437 10 1412 CSE081607%u2020 8 16 7.281 5.375 7.437 13 1412 CSE082007%u2020 8 20 7.281 5.375 7.437 16 1412 CSE121209 12 12 9.562 7.687 10.718 15 1412 CSE121609 12 16 9.562 7.687 10.718 18 1412 CSE122009 12 20 9.562 7.687 10.718 22 1412 CSE122409 12 24 9.562 7.687 10.718 26 1412 CSE161611* 16 16 11.875 9.968 14.000 22 1412 CSE162011* 16 20 11.875 9.968 14.000 27 1412 CSE162411* 16 24 11.875 9.968 14.000 32 1412 CSE163011* 16 30 11.875 9.968 14.000 39 1412 CSE163611* 16 36 11.875 9.968 14.000 45 1412 CSE202013* 20 20 14.187 12.250 17.250 36 1412 CSE202413* 20 24 14.187 12.250 17.250 42 1412 CSE203013* 20 30 14.187 12.250 17.250 49%u2020 Without stabilising plate *Enclosures with a height of 16 inches and more are supplied with two gas springs and two door stiffeners.%u00a7 %u00a7 %u00a7 %u00a7 %u00a71412 CSE
