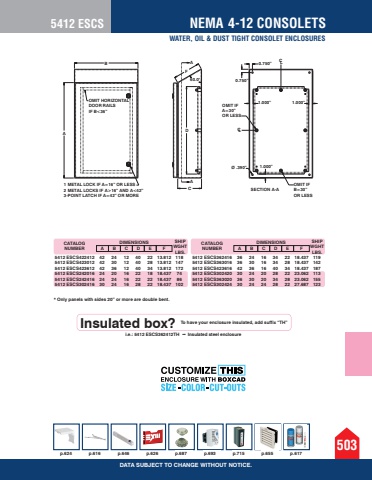

5412 ESCS503NEMA 4-12 CONSOLETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.BOMIT HORIZONTALDOOR RAILSIF B<36%u201dA1 METAL LOCK IF A=16%u201d OR LESS2 METAL LOCKS IF A>16%u201d AND A<42%u201d3-POINT LATCH IF A=42%u201d OR MOREAF60.0%u00b0DAC%u00d8 .390%u201dSECTION A-AOMIT IFB=30%u201dOR LESS1.000%u201d1.000%u201d 1.000%u201d OMIT IFA=30%u201dOR LESS0.750%u201d0.750%u201d CLCL* Only panels with sides 20%u201d or more are double bent.CATALOG NUMBER A B C D E FDIMENSIONS SHIP WGHT LBS.5412 ESCS422412 42 24 12 40 22 13.812 118 5412 ESCS423012 42 30 12 40 28 13.812 147 5412 ESCS423612 42 36 12 40 34 13.812 172 5412 ESCS242016 24 20 16 22 18 18.437 74 5412 ESCS242416 24 24 16 22 22 18.437 86 5412 ESCS302416 30 24 16 28 22 18.437 102 5412 ESCS362416 36 24 16 34 22 18.437 119 5412 ESCS363016 36 30 16 34 28 18.437 142 5412 ESCS423616 42 36 16 40 34 18.437 187 5412 ESCS302420 30 24 20 28 22 23.062 113 5412 ESCS363020 36 30 20 34 28 23.062 155 5412 ESCS302424 30 24 24 28 22 27.687 123 CATALOG NUMBERSHIP WGHT LBS.p.624 p.616 p.646 p.626 p.687 p.693 p.715 p.655 p.617A B C D E FDIMENSIONSi.e.: 5412 ESCS362412TH %uf0b0 Insulated steel enclosure Insulated box? To have your enclosure insulated, add suffix %u201cTH%u201dWATER, OIL & DUST TIGHT CONSOLET ENCLOSURES
