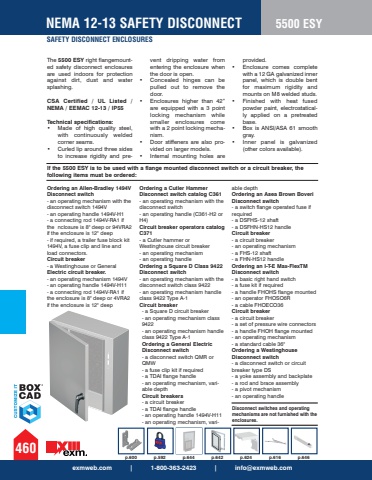

p.600 p.592 p.644 p.642 p.624 p.616 p.646NEMA 12-13 SAFETY DISCONNECTSAFETY DISCONNECT ENCLOSURES5500 ESYOrdering an Allen-Bradley 1494V Disconnect switch- an operating mechanism with the disconnect switch 1494V - an operating handle 1494V-H1 - a connecting rod 1494V-RA1 if the nclosure is 8\if the enclosure is 12\- if required, a trailer fuse block kit 1494V, a fuse clip and line and load connectors. Circuit breaker- a Westinghouse or General Electric circuit breaker.- an operating mechanism 1494V - an operating handle 1494V-H11 - a connecting rod 1494V-RA1 if the enclosure is 8\if the enclosure is 12\Ordering a Cutler Hammer Disconnect switch catalog C361- an operating mechanism with the disconnect switch - an operating handle (C361-H2 or H4) Circuit breaker operators catalog C371- a Cutler hammer or Westinghouse circuit breaker - an operating mechanism - an operating handle Ordering a Square D Class 9422 Disconnect switch- an operating mechanism with the disconnect switch class 9422 - an operating mechanism handle class 9422 Type A-1 Circuit breaker- a Square D circuit breaker - an operating mechanism class 9422 - an operating mechanism handle class 9422 Type A-1 Ordering a General Electric Disconnect switch- a disconnect switch QMR or QMW - a fuse clip kit if required - a TDAI flange handle - an operating mechanism, variable depth Circuit breakers- a circuit breaker - a TDAI flange handle - an operating handle 1494V-H11 - an operating mechanism, variable depth Ordering an Asea Brown Boveri Disconnect switch- a switch flange operated fuse if required - a DSFHS-12 shaft - a DSFHN-HS12 handle Circuit breaker- a circuit breaker - an operating mechanism - a FHS-12 shaft - a FHN-HS12 handle Ordering an I-T-E Max-FlexTM Disconnect switch- a basic right hand switch - a fuse kit if required - a handle FHOHS flange mounted - an operator FHOSO6R - a cable FHOECO36 Circuit breaker- a circuit breaker - a set of pressure wire connectors - a handle FHOH flange mounted - an operating mechanism - a standard cable 36\Ordering a Westinghouse Disconnect switch- a disconnect switch or circuit breaker type DS - a yoke assembly and backplate - a rod and brace assembly - a pivot mechanism - an operating handleThe 5500 ESY right flangemounted safety disconnect enclosures are used indoors for protection against dirt, dust and water splashing. CSA Certified / UL Listed / NEMA / EEMAC 12-13 / IP55Technical specifications: %u2022 Made of high quality steel, with continuously welded corner seams. %u2022 Curled lip around three sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. %u2022 Concealed hinges can be pulled out to remove the door. %u2022 Enclosures higher than 42%u201d are equipped with a 3 point locking mechanism while smaller enclosures come with a 2 point locking mechanism. %u2022 Door stiffeners are also provided on larger models. %u2022 Internal mounting holes are provided. %u2022 Enclosure comes complete with a 12 GA galvanized inner panel, which is double bent for maximum rigidity and mounts on M8 welded studs. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Box is ANSI/ASA 61 smooth gray. %u2022 Inner panel is galvanized (other colors available). If the 5500 ESY is to be used with a flange mounted disconnect switch or a circuit breaker, the following items must be ordered:Disconnect switches and operating mechanisms are not furnished with the enclosures.exmweb.com | 1-800-363-2423 | [email protected]
