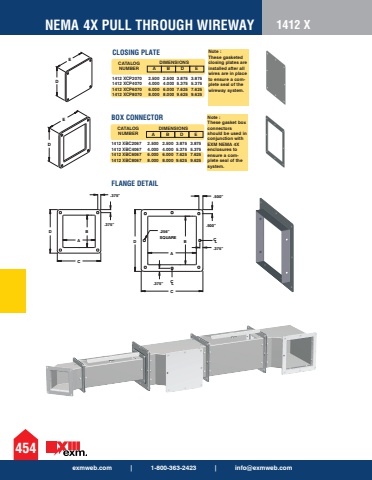

exmweb.com | 1-800-363-2423 | [email protected] CONNECTORFLANGE DETAILNEMA 4X PULL THROUGH WIREWAY 1412 X.375%u201d.375%u201d.500%u201d.500%u201d.256%u201dSQUARECAD B CLCL.375%u201d.375%u201dCAD BCATALOG NUMBERDEA B D EDIMENSIONS1412 XBC2067 2.500 2.500 3.875 3.875 1412 XBC4067 4.000 4.000 5.375 5.375 1412 XBC6067 6.000 6.000 7.625 7.625 1412 XBC8067 8.000 8.000 9.625 9.625Note : These gasket box connectors should be used in conjunction with EXM NEMA 4X enclosures to ensure a complete seal of the system. EDCLOSING PLATECATALOG NUMBER A B D EDIMENSIONS1412 XCP2070 2.500 2.500 3.875 3.875 1412 XCP4070 4.000 4.000 5.375 5.375 1412 XCP6070 6.000 6.000 7.625 7.625 1412 XCP8070 8.000 8.000 9.625 9.625Note : These gasketed closing plates are installed after all wires are in place to ensure a complete seal of the wireway system.
