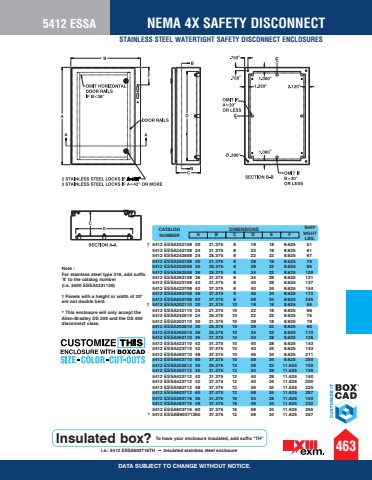

5412 ESSA NEMA 4X SAFETY DISCONNECTA<42%u201d%u201d%u201d %u201d%u201d %u201d%u201d %u201dNote : For stainless steel type 316, add suffix %u20186%u2019 to the catalog number (i.e. 5500 ESSA4231126) %u2020 Panels with a height or width of 20%u201d are not double bent. * This enclosure will only accept the Allen-Bradley DS 200 and the DS 400 disconnect class.i.e.: 5412 ESSA603716TH %uf0b0 Insulated stainless steel enclosureInsulated box? To have your enclosure insulated, add suffix %u201cTH%u201dSTAINLESS STEEL WATERTIGHT SAFETY DISCONNECT ENCLOSURES463DATA SUBJECT TO CHANGE WITHOUT NOTICE.CATALOG NUMBER A B C D E FDIMENSIONS SHIP WGHT LBS.5412 ESSA202108 20 21.375 8 18 18 8.625 51 5412 ESSA242108 24 21.375 8 22 18 8.625 61 5412 ESSA242508 24 25.375 8 22 22 8.625 67 5412 ESSA302108 30 21.375 8 28 18 8.625 74 5412 ESSA302508 30 25.375 8 28 22 8.625 85 5412 ESSA362508 36 25.375 8 34 22 8.625 100 5412 ESSA363108 36 31.375 8 34 28 8.625 121 5412 ESSA423108 42 31.375 8 40 28 8.625 137 5412 ESSA423708 42 37.375 8 40 34 8.625 154 5412 ESSA483708 48 37.375 8 46 34 8.625 172 5412 ESSA603708 60 37.375 8 58 34 8.625 245 5412 ESSA202110 20 21.375 10 18 18 8.625 55 5412 ESSA242110 24 21.375 10 22 18 8.625 68 5412 ESSA242510 24 25.375 10 22 22 8.625 75 5412 ESSA302110 30 21.375 10 28 18 8.625 78 5412 ESSA302510 30 25.375 10 28 22 8.625 90 5412 ESSA362510 36 25.375 10 34 22 8.625 110 5412 ESSA363110 36 31.375 10 34 28 8.625 126 5412 ESSA423110 42 31.375 10 40 28 8.625 143 5412 ESSA423710 42 37.375 10 40 34 8.625 143 5412 ESSA483710 48 37.375 10 46 34 8.625 211 5412 ESSA603710 60 37.375 10 58 34 8.625 250 5412 ESSA302512 30 25.375 12 28 22 11.625 100 5412 ESSA363112 36 31.375 12 34 28 11.625 130 5412 ESSA423112 42 31.375 12 40 28 11.625 150 5412 ESSA423712 42 37.375 12 40 34 11.625 200 5412 ESSA483712 48 37.375 12 46 34 11.625 220 5412 ESSA603712 60 37.375 12 58 34 11.625 257 5412 ESSA363116 36 31.375 16 34 28 11.625 150 5412 ESSA483716 48 37.375 16 46 34 11.625 232 5412 ESSA603716 60 37.375 16 58 34 11.625 265 * 5412 ESSAB60371260 37.375 12 58 34 11.625 257 %u2020%u2020
