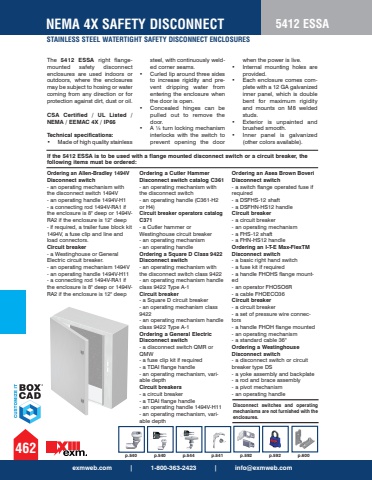

NEMA 4X SAFETY DISCONNECTSTAINLESS STEEL WATERTIGHT SAFETY DISCONNECT ENCLOSURES5412 ESSAThe 5412 ESSA right flangemounted safety disconnect enclosures are used indoors or outdoors, where the enclosures may be subject to hosing or water coming from any direction or for protection against dirt, dust or oil. CSA Certified / UL Listed / NEMA / EEMAC 4X / IP66Technical specifications: %u2022 Made of high quality stainless steel, with continuously welded corner seams. %u2022 Curled lip around three sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. %u2022 Concealed hinges can be pulled out to remove the door. %u2022 A %u00bc turn locking mechanism interlocks with the switch to prevent opening the door when the power is live. %u2022 Internal mounting holes are provided. %u2022 Each enclosure comes complete with a 12 GA galvanized inner panel, which is double bent for maximum rigidity and mounts on M8 welded studs. %u2022 Exterior is unpainted and brushed smooth. %u2022 Inner panel is galvanized (other colors available).Ordering an Allen-Bradley 1494V Disconnect switch- an operating mechanism with the disconnect switch 1494V - an operating handle 1494V-H1 - a connecting rod 1494V-RA1 if the enclosure is 8\RA2 if the enclosure is 12\- if required, a trailer fuse block kit 1494V, a fuse clip and line and load connectors. Circuit breaker - a Westinghouse or General Electric circuit breaker. - an operating mechanism 1494V - an operating handle 1494V-H11 - a connecting rod 1494V-RA1 if the enclosure is 8\RA2 if the enclosure is 12\Ordering a Cutler Hammer Disconnect switch catalog C361 - an operating mechanism with the disconnect switch - an operating handle (C361-H2 or H4) Circuit breaker operators catalog C371 - a Cutler hammer or Westinghouse circuit breaker - an operating mechanism - an operating handle Ordering a Square D Class 9422Disconnect switch - an operating mechanism with the disconnect switch class 9422 - an operating mechanism handle class 9422 Type A-1 Circuit breaker - a Square D circuit breaker - an operating mechanism class 9422 - an operating mechanism handle class 9422 Type A-1 Ordering a General Electric Disconnect switch - a disconnect switch QMR or QMW - a fuse clip kit if required - a TDAI flange handle - an operating mechanism, variable depth Circuit breakers - a circuit breaker - a TDAI flange handle - an operating handle 1494V-H11 - an operating mechanism, variable depth Ordering an Asea Brown Boveri Disconnect switch- a switch flange operated fuse if required - a DSFHS-12 shaft - a DSFHN-HS12 handle Circuit breaker - a circuit breaker - an operating mechanism - a FHS-12 shaft - a FHN-HS12 handle Ordering an I-T-E Max-FlexTM Disconnect switch - a basic right hand switch - a fuse kit if required - a handle FHOHS flange mounted - an operator FHOSO6R - a cable FHOECO36 Circuit breaker - a circuit breaker - a set of pressure wire connectors - a handle FHOH flange mounted - an operating mechanism - a standard cable 36\Ordering a Westinghouse Disconnect switch- a disconnect switch or circuit breaker type DS - a yoke assembly and backplate - a rod and brace assembly - a pivot mechanism - an operating handle If the 5412 ESSA is to be used with a flange mounted disconnect switch or a circuit breaker, the following items must be ordered:Disconnect switches and operating mechanisms are not furnished with the enclosures.p.540 p.540 p.544 p.541 p.592 p.592 p.600exmweb.com | 1-800-363-2423 | [email protected]
