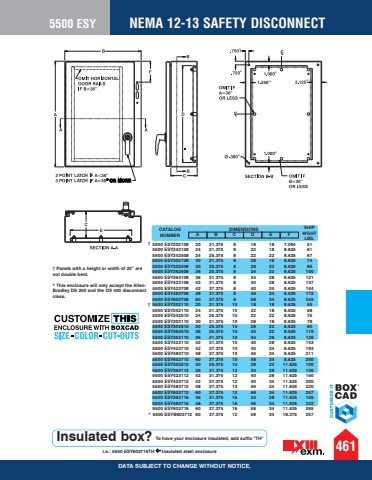

5500 ESY NEMA 12-13 SAFETY DISCONNECTHH = %u201d OR MORE%u201d%u201d %u201d%u201d %u201d%u201d %u201d%u2020 Panels with a height or width of 20%u201d are not double bent. * This enclosure will only accept the AllenBradley DS 200 and the DS 400 disconnect class.i.e.: 5500 ESY603716TH %uf0b0 Insulated steel enclosureInsulated box? To have your enclosure insulated, add suffix %u201cTH%u201d461DATA SUBJECT TO CHANGE WITHOUT NOTICE.CATALOG NUMBER A B C D E FDIMENSIONS SHIP WGHT LBS.5500 ESY202108 20 21.375 8 18 18 7.094 51 5500 ESY242108 24 21.375 8 22 18 8.625 61 5500 ESY242508 24 25.375 8 22 22 8.625 67 5500 ESY302108 30 21.375 8 28 18 8.625 74 5500 ESY302508 30 25.375 8 28 22 8.625 85 5500 ESY362508 36 25.375 8 34 22 8.625 1005500 ESY363108 36 31.375 8 34 28 8.625 121 5500 ESY423108 42 31.375 8 40 28 8.625 137 5500 ESY423708 42 37.375 8 40 34 8.625 154 5500 ESY483708 48 37.375 8 46 34 8.625 172 5500 ESY603708 60 37.375 8 58 34 8.625 245 5500 ESY202110 20 21.375 10 18 18 8.625 55 5500 ESY242110 24 21.375 10 22 18 8.625 68 5500 ESY242510 24 25.375 10 22 22 8.625 75 5500 ESY302110 30 21.375 10 28 18 8.625 78 5500 ESY302510 30 25.375 10 28 22 8.625 90 5500 ESY362510 36 25.375 10 34 22 8.625 110 5500 ESY363110 36 31.375 10 34 28 8.625 126 5500 ESY423110 42 31.375 10 40 28 8.625 143 5500 ESY423710 42 37.375 10 40 34 8.625 193 5500 ESY483710 48 37.375 10 46 34 8.625 211 5500 ESY603710 60 37.375 10 58 34 8.625 250 5500 ESY302512 30 25.375 12 28 22 11.625 1005500 ESY363112 36 31.375 12 34 28 11.625 130 5500 ESY423112 42 31.375 12 40 28 11.625 150 5500 ESY423712 42 37.375 12 40 34 11.625 200 5500 ESY483712 48 37.375 12 46 34 11.625 220 5500 ESY603712 60 37.375 12 58 34 11.625 257 5500 ESY363116 36 31.375 16 34 28 11.625 150 5500 ESY483716 48 37.375 16 46 34 11.625 232 5500 ESY603716 60 37.375 16 58 34 11.625 265 * 5500 ESYB603712 60 37.375 12 58 34 18.375 257%u2020%u2020
