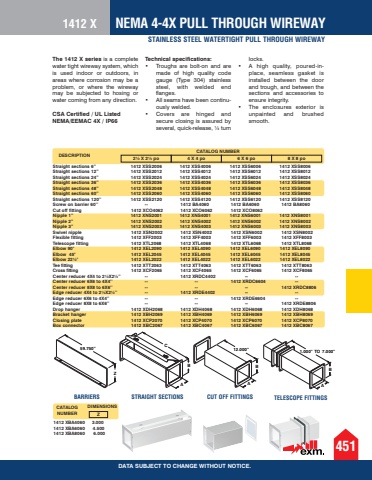

451DATA SUBJECT TO CHANGE WITHOUT NOTICE.NEMA 4-4X PULL THROUGH WIREWAYSTAINLESS STEEL WATERTIGHT PULL THROUGH WIREWAY1412 XThe 1412 X series is a complete water tight wireway system, which is used indoor or outdoors, in areas where corrosion may be a problem, or where the wireway may be subjected to hosing or water coming from any direction. CSA Certified / UL Listed NEMA/EEMAC 4X / IP66 Technical specifications: %u2022 Troughs are bolt-on and are made of high quality code gauge (Type 304) stainless steel, with welded end flanges. %u2022 All seams have been continuously welded. %u2022 Covers are hinged and secure closing is assured by several, quick-release, %u00bc turn locks. %u2022 A high quality, poured-inplace, seamless gasket is installed between the door and trough, and between the sections and accessories to ensure integrity. %u2022 The enclosures exterior is unpainted and brushed smooth.Z59.750%u201dBAC12.000%u201dBA1.000%u201d TO 7.000%u201dABCATALOG NUMBER ZDIMENSIONS1412 XBA4060 3.000 1412 XBA6060 4.500 1412 XBA8060 6.000BARRIERS STRAIGHT SECTIONS CUT OFF FITTINGS TELESCOPE FITTINGSDESCRIPTION 2%u00bd X 2%u00bd po 4 X 4 po 6 X 6 po 8 X 8 poCATALOG NUMBERStraight sections 6%u2019%u2019 1412 XSS2006 1412 XSS4006 1412 XSS6006 1412 XSS8006 Straight sections 12%u2019%u2019 1412 XSS2012 1412 XSS4012 1412 XSS6012 1412 XSS8012 Straight sections 24%u2019%u2019 1412 XSS2024 1412 XSS4024 1412 XSS6024 1412 XSS8024 Straight sections 36%u2019%u2019 1412 XSS2036 1412 XSS4036 1412 XSS6036 1412 XSS8036 Straight sections 48%u2019%u2019 1412 XSS2048 1412 XSS4048 1412 XSS6048 1412 XSS8048 Straight sections 60%u2019%u2019 1412 XSS2060 1412 XSS4060 1412 XSS6060 1412 XSS8060 Straight sections 120%u2019%u2019 1412 XSS2120 1412 XSS4120 1412 XSS6120 1412 XSS8120 Screw on barrier 60%u2019%u2019 -- 1412 BA4060 1412 BA6060 1412 BA8060 Cut off fitting 1412 XCO4062 1412 XCO6062 1412 XCO8062 Nipple 1%u2019%u2019 1412 XNS2001 1412 XNS4001 1412 XNS6001 1412 XNS8001 Nipple 2%u2019%u2019 1412 XNS2002 1412 XNS4002 1412 XNS6002 1412 XNS8002 Nipple 3%u2019%u2019 1412 XNS2003 1412 XNS4003 1412 XNS6003 1412 XNS8003 Swivel nipple 1412 XSN2002 1412 XSN4002 1412 XSN6002 1412 XSN8002 Flexible fitting 1412 XFF2003 1412 XFF4003 1412 XFF6003 1412 XFF8003 Telescope fitting 1412 XTL2068 1412 XTL4068 1412 XTL6068 1412 XTL8068 Elbow 90%u00b0 1412 XEL2090 1412 XEL4090 1412 XEL6090 1412 XEL8090 Elbow 45%u00b0 1412 XEL2045 1412 XEL4045 1412 XEL6045 1412 XEL8045 Elbow 22%u00bd%u00b0 1412 XEL2022 1412 XEL4022 1412 XEL6022 1412 XEL8022 Tee fitting 1412 XTT2063 1412 XTT4063 1412 XTT6063 1412 XTT8063 Cross fitting 1412 XCF2065 1412 XCF4065 1412 XCF6065 1412 XCF8065 Center reducer 4X4 to 2%u00bdX2%u00bd%u2019%u2019 -- 1412 XRDC4402 -- -- Center reducer 6X6 to 4X4%u2019%u2019 -- -- 1412 XRDC6604 -- Center reducer 8X8 to 6X6%u2019%u2019 -- -- -- 1412 XRDC8806 Edge reducer 4X4 to 2%u00bdX2%u00bd%u2019%u2019 -- 1412 XRDE4402 -- -- Edge reducer 6X6 to 4X4%u2019%u2019 -- -- 1412 XRDE6604 -- Edge reducer 8X8 to 6X6%u2019%u2019 -- -- -- 1412 XRDE8806 Drop hanger 1412 XDH2068 1412 XDH4068 1412 XDH6068 1412 XDH8068 Bracket hanger 1412 XBH2069 1412 XBH4069 1412 XBH6069 1412 XBH8069 Closing plate 1412 XCP2070 1412 XCP4070 1412 XCP6070 1412 XCP8070 Box connector 1412 XBC2067 1412 XBC4067 1412 XBC6067 1412 XBC8067
