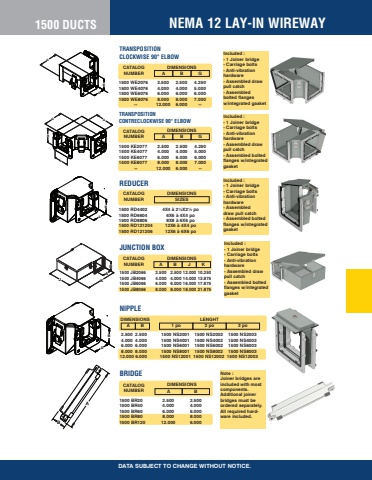

445DATA SUBJECT TO CHANGE WITHOUT NOTICE.1500 DUCTS NEMA 12 LAY-IN WIREWAY G AB AB G G A B BAJ K A BBADIMENSIONSNote : Joiner bridges are included with most components. Additional joiner bridges must be ordered separately. All required hardware included.A B1500 BR20 2.500 2.500 1500 BR40 4.000 4.000 1500 BR60 6.000 6.000 1500 BR80 8.000 8.000 1500 BR120 12.000 6.000CATALOG NUMBER A B GDIMENSIONS1500 WE2076 2.500 2.500 4.2501500 WE4076 4.000 4.000 5.000 1500 WE6076 6.000 6.000 6.000 1500 WE8076 8.000 8.000 7.000 -- 12.000 6.000 --Included : - 1 Joiner bridge- Carriage bolts- Anti-vibrationhardware- Assembled drawpull catch - Assembledbolted flanges w/integrated gasketCATALOG NUMBER A B GDIMENSIONS1500 KE2077 2.500 2.500 4.2501500 KE4077 4.000 4.000 5.000 1500 KE6077 6.000 6.000 6.000 1500 KE8077 8.000 8.000 7.000 -- 12.000 6.000 --Included : - 1 Joiner bridge- Carriage bolts- Anti-vibrationhardware- Assembled drawpull catch - Assembled boltedflanges w/integrated gasketCATALOG NUMBER SIZESDIMENSIONS1500 RD4402 4X4 %u00e0 2%u00bdX2%u00bd po 1500 RD6604 6X6 %u00e0 4X4 po 1500 RD8806 8X8 %u00e0 6X6 po 1500 RD121204 12X6 %u00e0 4X4 po 1500 RD121206 12X6 %u00e0 6X6 poIncluded : - 1 Joiner bridge- Carriage bolts- Anti-vibrationhardware- Assembleddraw pull catch - Assembled boltedflanges w/integrated gasketCATALOG NUMBERDIMENSIONSIncluded : - 1 Joiner bridge- Carriage bolts- Anti-vibrationhardware- Assembled drawpull catch- Assembled boltedflanges w/integratedgasketDIMENSIONS2.500 2.500 1500 NS2001 1500 NS2002 1500 NS2003 4.000 4.000 1500 NS4001 1500 NS4002 1500 NS4003 6.000 6.000 1500 NS6001 1500 NS6002 1500 NS6003 8.000 8.000 1500 NS8001 1500 NS8002 1500 NS8003 12.000 6.000 1500 NS12001 1500 NS12002 1500 NS12003A B J K1500 JB2066 2.500 2.500 12.000 10.2501500 JB4066 4.000 4.000 14.000 13.875 1500 JB6066 6.000 6.000 16.000 17.875 1500 JB8066 8.000 8.000 18.000 21.875A B 1 po 2 po 3 poLENGHTCATALOG NUMBERTRANSPOSITION CLOCKWISE 90%u00b0 ELBOWTRANSPOSITION CONTRECLOCKWISE 90%u00b0 ELBOWREDUCERJUNCTION BOXNIPPLEBRIDGE
