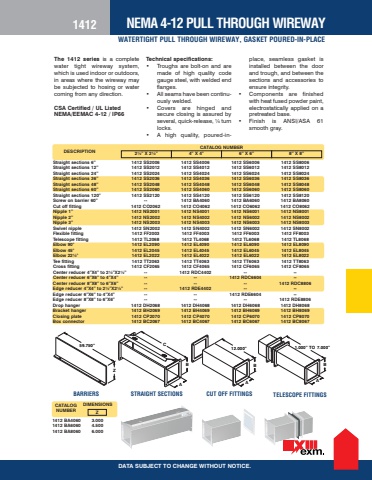

447DATA SUBJECT TO CHANGE WITHOUT NOTICE.NEMA 4-12 PULL THROUGH WIREWAYWATERTIGHT PULL THROUGH WIREWAY, GASKET POURED-IN-PLACE1412The 1412 series is a complete water tight wireway system, which is used indoor or outdoors, in areas where the wireway may be subjected to hosing or water coming from any direction. CSA Certified / UL ListedNEMA/EEMAC 4-12 / IP66 Technical specifications: %u2022 Troughs are bolt-on and aremade of high quality codegauge steel, with welded endflanges.%u2022 All seams have been continuously welded.%u2022 Covers are hinged andsecure closing is assured byseveral, quick-release, %u00bc turnlocks.%u2022 A high quality, poured-inplace, seamless gasket is installed between the door and trough, and between the sections and accessories to ensure integrity. %u2022 Components are finishedwith heat fused powder paint,electrostatically applied on apretreated base.%u2022 Finish is ANSI/ASA 61smooth gray.Z59.750%u201dBAC12.000%u201dBA1.000%u201d TO 7.000%u201dABCATALOG NUMBER ZDIMENSIONS1412 BA4060 3.000 1412 BA6060 4.500 1412 BA8060 6.000DESCRIPTION 2%u00bd%u201d X 2%u00bd%u201d 4%u201d X 4%u201d 6%u201d X 6%u201d 8%u201d X 8%u201dCATALOG NUMBERStraight sections 6%u201d 1412 SS2006 1412 SS4006 1412 SS6006 1412 SS8006 Straight sections 12%u201d 1412 SS2012 1412 SS4012 1412 SS6012 1412 SS8012 Straight sections 24%u201d 1412 SS2024 1412 SS4024 1412 SS6024 1412 SS8024 Straight sections 36%u201d 1412 SS2036 1412 SS4036 1412 SS6036 1412 SS8036 Straight sections 48%u201d 1412 SS2048 1412 SS4048 1412 SS6048 1412 SS8048 Straight sections 60%u201d 1412 SS2060 1412 SS4060 1412 SS6060 1412 SS8060 Straight sections 120%u201d 1412 SS2120 1412 SS4120 1412 SS6120 1412 SS8120 Screw on barrier 60%u201d -- 1412 BA4060 1412 BA6060 1412 BA8060 Cut off fitting 1412 CO2062 1412 CO4062 1412 CO6062 1412 CO8062 Nipple 1%u201d 1412 NS2001 1412 NS4001 1412 NS6001 1412 NS8001 Nipple 2%u201d 1412 NS2002 1412 NS4002 1412 NS6002 1412 NS8002 Nipple 3%u201d 1412 NS2003 1412 NS4003 1412 NS6003 1412 NS8003 Swivel nipple 1412 SN2002 1412 SN4002 1412 SN6002 1412 SN8002 Flexible fitting 1412 FF2003 1412 FF4003 1412 FF6003 1412 FF8003 Telescope fitting 1412 TL2068 1412 TL4068 1412 TL6068 1412 TL8068 Elbow 90%u00b0 1412 EL2090 1412 EL4090 1412 EL6090 1412 EL8090 Elbow 45%u00b0 1412 EL2045 1412 EL4045 1412 EL6045 1412 EL8045 Elbow 22%u00bd%u00b0 1412 EL2022 1412 EL4022 1412 EL6022 1412 EL8022 Tee fitting 1412 TT2063 1412 TT4063 1412 TT6063 1412 TT8063 Cross fitting 1412 CF2065 1412 CF4065 1412 CF6065 1412 CF8065 Center reducer 4%u201dX4%u201d to 2%u00bd%u201dX2%u00bd%u201d -- 1412 RDC4402 -- -- Center reducer 6%u201dX6%u201d to 4%u201dX4%u201d -- -- 1412 RDC6604 -- Center reducer 8%u201dX8%u201d to 6%u201dX6%u201d -- -- -- 1412 RDC8806 Edge reducer 4%u201dX4%u201d to 2%u00bd%u201dX2%u00bd%u201d -- 1412 RDE4402 -- -- Edge reducer 6%u201dX6%u201d to 4%u201dX4%u201d -- -- 1412 RDE6604 -- Edge reducer 8%u201dX8%u201d to 6%u201dX6%u201d -- -- -- 1412 RDE8806 Drop hanger 1412 DH2068 1412 DH4068 1412 DH6068 1412 DH8068 Bracket hanger 1412 BH2069 1412 BH4069 1412 BH6069 1412 BH8069 Closing plate 1412 CP2070 1412 CP4070 1412 CP6070 1412 CP8070 Box connector 1412 BC2067 1412 BC4067 1412 BC6067 1412 BC8067BARRIERS STRAIGHT SECTIONS CUT OFF FITTINGS TELESCOPE FITTINGS
