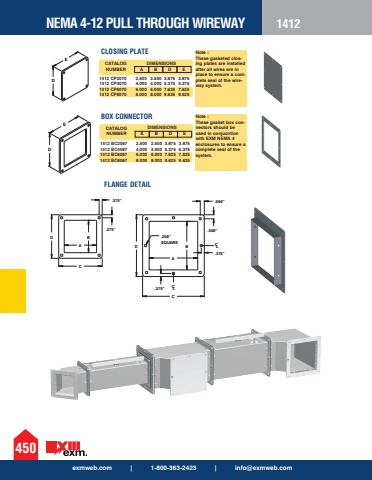

exmweb.com | 1-800-363-2423 | [email protected] 4-12 PULL THROUGH WIREWAY 1412.375%u201d.375%u201d.500%u201d.500%u201d.256%u201dSQUARECAD B CLCL.375%u201d.375%u201dCAD BEDDE CATALOG NUMBER A B D EDIMENSIONS1412 BC2067 2.500 2.500 3.875 3.875 1412 BC4067 4.000 4.000 5.375 5.375 1412 BC6067 6.000 6.000 7.625 7.625 1412 BC8067 8.000 8.000 9.625 9.625CATALOG NUMBER A B D EDIMENSIONS1412 CP 2070 2.500 2.500 3.875 3.875 1412 CP4070 4.000 4.000 5.375 5.375 1412 CP6070 6.000 6.000 7.625 7.625 1412 CP8070 8.000 8.000 9.625 9.625Note : These gasketed closing plates are installed after all wires are in place to ensure a complete seal of the wireway system.Note : These gasket box connectors should be used in conjucntion with EXM NEMA 4 enclosures to ensure a complete seal of the system.CLOSING PLATEBOX CONNECTORFLANGE DETAIL
