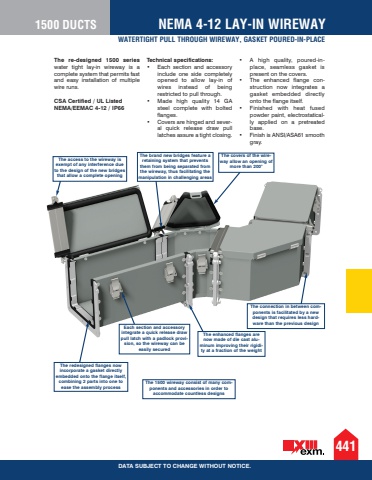

441DATA SUBJECT TO CHANGE WITHOUT NOTICE.NEMA 4-12 LAY-IN WIREWAYWATERTIGHT PULL THROUGH WIREWAY, GASKET POURED-IN-PLACE1500 DUCTSThe re-designed 1500 series water tight lay-in wireway is a complete system that permits fast and easy installation of multiple wire runs. CSA Certified / UL Listed NEMA/EEMAC 4-12 / IP66 Technical specifications: %u2022 Each section and accessoryinclude one side completelyopened to allow lay-in ofwires instead of beingrestricted to pull through.%u2022 Made high quality 14 GAsteel complete with boltedflanges.%u2022 Covers are hinged and several quick release draw pulllatches assure a tight closing.%u2022 A high quality, poured-inplace, seamless gasket ispresent on the covers.%u2022 The enhanced flange construction now integrates agasket embedded directlyonto the flange itself.%u2022 Finished with heat fusedpowder paint, electrostatically applied on a pretreatedbase.%u2022 Finish is ANSI/ASA61 smoothgray.The access to the wireway is exempt of any interference due to the design of the new bridges that allow a complete openingThe redesigned flanges now incorporate a gasket directly embedded onto the flange itself, combining 2 parts into one to ease the assembly processThe covers of the wireway allow an opening of more than 200%u00b0The enhanced flanges are now made of die cast aluminum improving their rigidity at a fraction of the weightThe connection in between components is facilitated by a new design that requires less hardware than the previous designThe brand new bridges feature a retaining system that prevents them from being separated from the wireway, thus facilitating the manipulation in challenging areasThe 1500 wireway consist of many components and accessories in order to accommodate countless designsEach section and accessory integrate a quick release draw pull latch with a padlock provision, so the wireway can be easily secured
