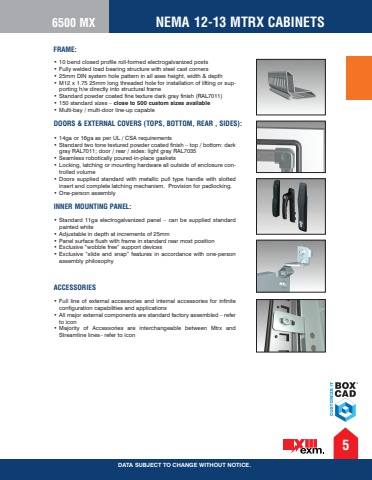

FRAME:6500 MX5NEMA 12-13 MTRX CABINETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.%u2022 10 bend closed profile roll-formed electrogalvanized posts %u2022 Fully welded load bearing structure with steel cast corners %u2022 25mm DIN system hole pattern in all axes height, width & depth %u2022 M12 x 1.75 25mm long threaded hole for installation of lifting or supporting h/w directly into structural frame %u2022 Standard powder coated fine texture dark gray finish (RAL7011) %u2022 150 standard sizes %u2013 close to 500 custom sizes available %u2022 Multi-bay / multi-door line-up capable%u2022 14ga or 16ga as per UL / CSA requirements %u2022 Standard two tone textured powder coated finish %u2013 top / bottom: dark gray RAL7011; door / rear / sides: light gray RAL7035 %u2022 Seamless robotically poured-in-place gaskets %u2022 Locking, latching or mounting hardware all outside of enclosure controlled volume %u2022 Doors supplied standard with metallic pull type handle with slotted insert and complete latching mechanism. Provision for padlocking. %u2022 One-person assembly %u2022 Standard 11ga electrogalvanized panel %u2013 can be supplied standard painted white %u2022 Adjustable in depth at increments of 25mm %u2022 Panel surface flush with frame in standard rear most position %u2022 Exclusive %u201cwobble free%u201d support devices %u2022 Exclusive %u201cslide and snap%u201d features in accordance with one-person assembly philosophy %u2022 Full line of external accessories and internal accessories for infinite configuration capabilities and applications %u2022 All major external components are standard factory assembled %u2013 refer to icon %u2022 Majority of Accessories are interchangeable between Mtrx and Streamline lines%u2013 refer to icon DOORS & EXTERNAL COVERS (TOPS, BOTTOM, REAR , SIDES):INNER MOUNTING PANEL:ACCESSORIES
