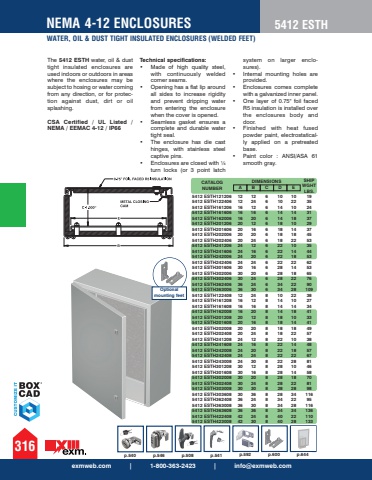

p.541 p.592 p.600 p.644The 5412 ESTH water, oil & dust tight insulated enclosures are used indoors or outdoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 4-12 / IP66Technical specifications: %u2022 Made of high quality steel,with continuously weldedcorner seams.%u2022 Opening has a flat lip aroundall sides to increase rigidityand prevent dripping waterfrom entering the enclosurewhen the cover is opened.%u2022 Seamless gasket ensures acomplete and durable watertight seal.%u2022 The enclosure has die casthinges, with stainless steelcaptive pins.%u2022 Enclosures are closed with %u00bcturn locks (or 3 point latchsystem on larger enclosures). %u2022 Internal mounting holes areprovided.%u2022 Enclosures comes completewith a galvanized inner panel.%u2022 One layer of 0.75\R5 insulation is installed overthe enclosures body anddoor.%u2022 Finished with heat fusedpowder paint, electrostatically applied on a pretreatedbase.%u2022 Paint color : ANSI/ASA 61smooth gray.%u201dCATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.5412 ESTH121206 12 12 6 10 10 19 5412 ESTH122406 12 24 6 10 22 35 5412 ESTH161206 16 12 6 14 10 24 5412 ESTH161606 16 16 6 14 14 31 5412 ESTH162006 16 20 6 14 18 37 5412 ESTH201206 20 12 6 18 10 29 5412 ESTH201606 20 16 6 18 14 37 5412 ESTH202006 20 20 6 18 18 45 5412 ESTH202406 20 24 6 18 22 53 5412 ESTH241206 24 12 6 22 10 35 5412 ESTH241606 24 16 6 22 14 44 5412 ESTH242006 24 20 6 22 18 53 5412 ESTH242406 24 24 6 22 22 62 5412 ESTH301606 30 16 6 28 14 53 5412 ESTH302006 30 20 6 28 18 65 5412 ESTH302406 30 24 6 28 22 76 5412 ESTH362406 36 24 6 34 22 90 5412 ESTH363006 36 30 6 34 28 109 5412 ESTH122408 12 24 8 10 22 38 5412 ESTH161208 16 12 8 14 10 27 5412 ESTH161608 16 16 8 14 14 34 5412 ESTH162008 16 20 8 14 18 41 5412 ESTH201208 20 12 8 18 10 33 5412 ESTH201608 20 16 8 18 14 41 5412 ESTH202008 20 20 8 18 18 49 5412 ESTH202408 20 24 8 18 22 57 5412 ESTH241208 24 12 8 22 10 38 5412 ESTH241608 24 16 8 22 14 48 5412 ESTH242008 24 20 8 22 18 57 5412 ESTH242408 24 24 8 22 22 67 5412 ESTH243008 24 30 8 22 28 81 5412 ESTH301208 30 12 8 28 10 46 5412 ESTH301608 30 16 8 28 14 58 5412 ESTH302008 30 20 8 28 18 70 5412 ESTH302408 30 24 8 28 22 81 5412 ESTH303008 30 30 8 28 28 98 5412 ESTH303608 30 36 8 28 34 116 5412 ESTH362408 36 24 8 34 22 95 5412 ESTH363008 36 30 8 34 28 116 5412 ESTH363608 36 36 8 34 34 136 5412 ESTH422408 42 24 8 40 22 110 5412 ESTH423008 42 30 8 40 28 133 Optional mounting feetNEMA 4-12 ENCLOSURESWATER, OIL & DUST TIGHT INSULATED ENCLOSURES (WELDED FEET)5412 ESTHexmweb.com | 1-800-363-2423 | [email protected] p.546 p.508
