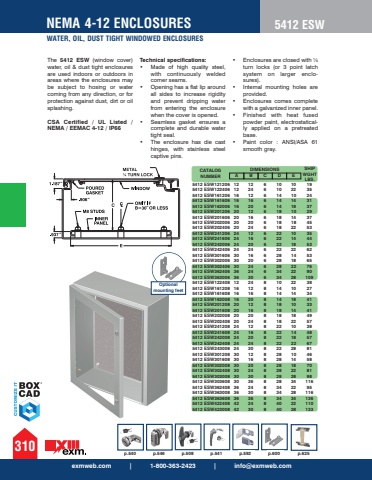

The 5412 ESW (window cover) water, oil & dust tight enclosures are used indoors or outdoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 4-12 / IP66 Technical specifications:%u2022 Made of high quality steel, with continuously welded corner seams. %u2022 Opening has a flat lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the cover is opened. %u2022 Seamless gasket ensures a complete and durable water tight seal. %u2022 The enclosure has die cast hinges, with stainless steel captive pins. %u2022 Enclosures are closed with %u00bc turn locks (or 3 point latch system on larger enclosures). %u2022 Internal mounting holes are provided. %u2022 Enclosures comes complete with a galvanized inner panel. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : ANSI/ASA 61 smooth gray.%u201d%u201d%u201d%u201dp.625exmweb.com | 1-800-363-2423 | [email protected] NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.5412 ESW121206 12 12 6 10 10 19 5412 ESW122406 12 24 6 10 22 35 5412 ESW161206 16 12 6 14 10 24 5412 ESW161606 16 16 6 14 14 31 5412 ESW162006 16 20 6 14 18 37 5412 ESW201206 20 12 6 18 10 29 5412 ESW201606 20 16 6 18 14 37 5412 ESW202006 20 20 6 18 18 45 5412 ESW202406 20 24 6 18 22 53 5412 ESW241206 24 12 6 22 10 35 5412 ESW241606 24 16 6 22 14 44 5412 ESW242006 24 20 6 22 18 53 5412 ESW242406 24 24 6 22 22 62 5412 ESW301606 30 16 6 28 14 53 5412 ESW302006 30 20 6 28 18 65 5412 ESW302406 30 24 6 28 22 76 5412 ESW362406 36 24 6 34 22 90 5412 ESW363006 36 30 6 34 28 109 5412 ESW122408 12 24 8 10 22 38 5412 ESW161208 16 12 8 14 10 27 5412 ESW161608 16 16 8 14 14 34 5412 ESW162008 16 20 8 14 18 41 5412 ESW201208 20 12 8 18 10 33 5412 ESW201608 20 16 8 18 14 41 5412 ESW202008 20 20 8 18 18 49 5412 ESW202408 20 24 8 18 22 57 5412 ESW241208 24 12 8 22 10 38 5412 ESW241608 24 16 8 22 14 48 5412 ESW242008 24 20 8 22 18 57 5412 ESW242408 24 24 8 22 22 67 5412 ESW243008 24 30 8 22 28 81 5412 ESW301208 30 12 8 28 10 46 5412 ESW301608 30 16 8 28 14 58 5412 ESW302008 30 20 8 28 18 70 5412 ESW302408 30 24 8 28 22 81 5412 ESW303008 30 30 8 28 28 98 5412 ESW303608 30 36 8 28 34 116 5412 ESW362408 36 24 8 34 22 95 5412 ESW363008 36 30 8 34 28 116 5412 ESW363608 36 36 8 34 34 136 5412 ESW422408 42 24 8 40 22 110 5412 ESW423008 42 30 8 40 28 133 Optional mounting feetNEMA 4-12 ENCLOSURESWATER, OIL, DUST TIGHT WINDOWED ENCLOSURES5412 ESWp.540 p.546 p.508 p.541 p.592 p.600
