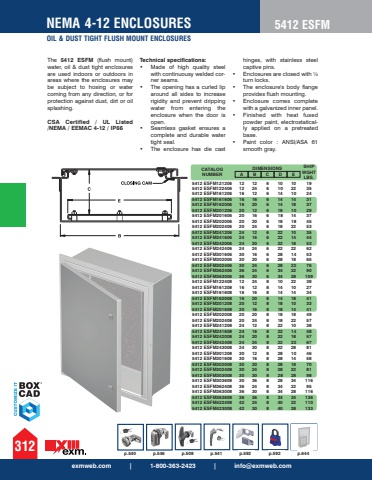

The 5412 ESFM (flush mount) water, oil & dust tight enclosures are used indoors or outdoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed /NEMA / EEMAC 4-12 / IP66 Technical specifications: %u2022 Made of high quality steelwith continuousy welded corner seams.%u2022 The opening has a curled liparound all sides to increaserigidity and prevent drippingwater from entering theenclosure when the door isopen.%u2022 Seamless gasket ensures acomplete and durable watertight seal.%u2022 The enclosure has die casthinges, with stainless steel captive pins. %u2022 Enclosures are closed with %u00bcturn locks.%u2022 The enclosure's body flangeprovides flush mounting.%u2022 Enclosure comes completewith a galvanized inner panel.%u2022 Finished with heat fusedpowder paint, electrostatically applied on a pretreatedbase.%u2022 Paint color : ANSI/ASA 61smooth gray.p.592 p.644exmweb.com | 1-800-363-2423 | [email protected] NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.5412 ESFM121206 12 12 6 10 10 19 5412 ESFM122406 12 24 6 10 22 35 5412 ESFM161206 16 12 6 14 10 24 5412 ESFM161606 16 16 6 14 14 31 5412 ESFM162006 16 20 6 14 18 37 5412 ESFM201206 20 12 6 18 10 29 5412 ESFM201606 20 16 6 18 14 37 5412 ESFM202006 20 20 6 18 18 45 5412 ESFM202406 20 24 6 18 22 53 5412 ESFM241206 24 12 6 22 10 35 5412 ESFM241606 24 16 6 22 14 44 5412 ESFM242006 24 20 6 22 18 53 5412 ESFM242406 24 24 6 22 22 62 5412 ESFM301606 30 16 6 28 14 53 5412 ESFM302006 30 20 6 28 18 65 5412 ESFM302406 30 24 6 28 22 76 5412 ESFM362406 36 24 6 34 22 90 5412 ESFM363006 36 30 6 34 28 109 5412 ESFM122408 12 24 8 10 22 38 5412 ESFM161208 16 12 8 14 10 27 5412 ESFM161608 16 16 8 14 14 34 5412 ESFM162008 16 20 8 14 18 41 5412 ESFM201208 20 12 8 18 10 33 5412 ESFM201608 20 16 8 18 14 41 5412 ESFM202008 20 20 8 18 18 49 5412 ESFM202408 20 24 8 18 22 57 5412 ESFM241208 24 12 8 22 10 38 5412 ESFM241608 24 16 8 22 14 48 5412 ESFM242008 24 20 8 22 18 57 5412 ESFM242408 24 24 8 22 22 67 5412 ESFM243008 24 30 8 22 28 81 5412 ESFM301208 30 12 8 28 10 46 5412 ESFM301608 30 16 8 28 14 58 5412 ESFM302008 30 20 8 28 18 70 5412 ESFM302408 30 24 8 28 22 81 5412 ESFM303008 30 30 8 28 28 98 5412 ESFM303608 30 36 8 28 34 116 5412 ESFM362408 36 24 8 34 22 95 5412 ESFM363008 36 30 8 34 28 116 5412 ESFM363608 36 36 8 34 34 136 5412 ESFM422408 42 24 8 40 22 110 5412 ESFM423008 42 30 8 40 28 133 NEMA 4-12 ENCLOSURESOIL & DUST TIGHT FLUSH MOUNT ENCLOSURES5412 ESFMp.540 p.546 p.508 p.541 p.592
