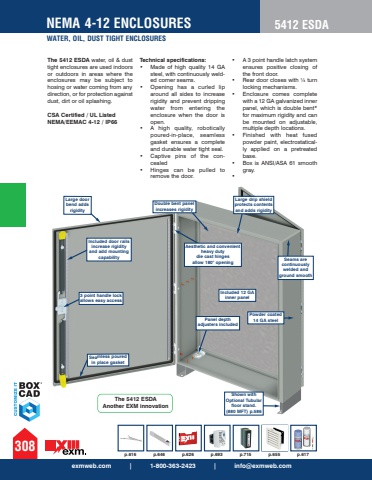

p.616 p.646 p.626 p.693 p.715 p.655 p.617Included 12 GA inner panelSeams are continuously welded and ground smoothLarge drip shield protects contents and adds rigiditySeamless poured in place gasketLarge door bend adds rigidity3 point handle lock allows easy accessIncluded door rails increase rigidity and add mounting capabilityAesthetic and convenient heavy duty die cast hinges allow 180%u00b0 openingThe 5412 ESDA Another EXM innovationPanel depth adjusters includedDouble bent panel increases rigidityShown with Optional Tubular floor stand. (880 MFT) p.586Powder coated 14 GA steelexmweb.com | 1-800-363-2423 | [email protected] 4-12 ENCLOSURESWATER, OIL, DUST TIGHT ENCLOSURES5412 ESDAThe 5412 ESDA water, oil & dust tight enclosures are used indoors or outdoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed NEMA/EEMAC 4-12 / IP66 Technical specifications: %u2022 Made of high quality 14 GA steel, with continuously welded corner seams. %u2022 Opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. %u2022 A high quality, robotically poured-in-place, seamless gasket ensures a complete and durable water tight seal. %u2022 Captive pins of the concealed %u2022 Hinges can be pulled to remove the door. %u2022 A 3 point handle latch system ensures positive closing of the front door. %u2022 Rear door closes with %u00bc turn locking mechanisms. %u2022 Enclosure comes complete with a 12 GA galvanized inner panel, which is double bent* for maximum rigidity and can be mounted on adjustable, multiple depth locations. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Box is ANSI/ASA 61 smooth gray.%u2022
