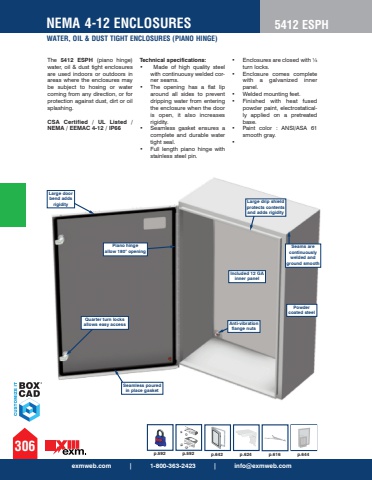

The 5412 ESPH (piano hinge) water, oil & dust tight enclosures are used indoors or outdoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 4-12 / IP66Technical specifications:%u2022 Made of high quality steel with continuousy welded corner seams. %u2022 The opening has a flat lip around all sides to prevent dripping water from entering the enclosure when the door is open, it also increases rigidity. %u2022 Seamless gasket ensures a complete and durable water tight seal. %u2022 Full length piano hinge with stainless steel pin. %u2022 Enclosures are closed with %u00bc turn locks. %u2022 Enclosure comes complete with a galvanized inner panel. %u2022 Welded mounting feet. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : ANSI/ASA 61 smooth gray. %u2022p.616 p.644Included 12 GA inner panelPowder coated steelSeams are continuously welded and ground smoothLarge drip shield protects contents and adds rigidityAnti-vibration flange nutsSeamless poured in place gasketLarge door bend adds rigidityQuarter turn locks allows easy accessPiano hinge allow 180%u00b0 openingp.592 p.592 p.642 p.624exmweb.com | 1-800-363-2423 | [email protected] 4-12 ENCLOSURESWATER, OIL & DUST TIGHT ENCLOSURES (PIANO HINGE)5412 ESPH
