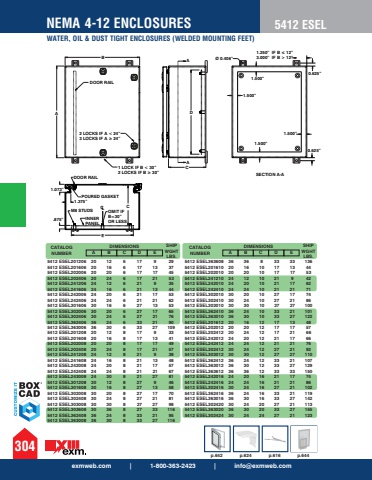

ABDOOR RAILM8 STUDSDOOR RAILINNER PANELOMIT IFB=30%u201dOR LESSCC C LSECTION A-AAA1.500%u201d1.500%u201d1.500%u201d1.500%u201dEDPOURED GASKET1.375%u201d.875%u201d2 LOCKS IF A < 24%u201d3 LOCKS IF A %u2265 24%u201d1 LOCK IF B < 30%u201d2 LOCKS IF B %u2265 30%u201d%u00d8 0.406%u201d0.625%u201d1.250%u201d IF B %u2264 12%u201d3.000%u201d IF B > 12%u201d0.625%u201d1.073%u201dp.642 p.624 p.616 p.644exmweb.com | 1-800-363-2423 | [email protected] NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.5412 ESEL201206 20 12 6 17 9 29 5412 ESEL201606 20 16 6 17 13 37 5412 ESEL202006 20 20 6 17 17 45 5412 ESEL202406 20 24 6 17 21 53 5412 ESEL241206 24 12 6 21 9 35 5412 ESEL241606 24 16 6 21 13 44 5412 ESEL242006 24 20 6 21 17 53 5412 ESEL242406 24 24 6 21 21 62 5412 ESEL301606 30 16 6 27 13 53 5412 ESEL302006 30 20 6 27 17 65 5412 ESEL302406 30 24 6 27 21 76 5412 ESEL362406 36 24 6 33 21 90 5412 ESEL363006 36 30 6 33 27 109 5412 ESEL201208 20 12 8 17 9 33 5412 ESEL201608 20 16 8 17 13 41 5412 ESEL202008 20 20 8 17 17 49 5412 ESEL202408 20 24 8 17 21 57 5412 ESEL241208 24 12 8 21 9 38 5412 ESEL241608 24 16 8 21 13 48 5412 ESEL242008 24 20 8 21 17 57 5412 ESEL242408 24 24 8 21 21 67 5412 ESEL243008 24 30 8 21 27 81 5412 ESEL301208 30 12 8 27 9 46 5412 ESEL301608 30 16 8 27 13 58 5412 ESEL302008 30 20 8 27 17 70 5412 ESEL302408 30 24 8 27 21 81 5412 ESEL303008 30 30 8 27 27 98 5412 ESEL303608 30 36 8 27 33 116 5412 ESEL362408 36 24 8 33 21 95 5412 ESEL363008 36 30 8 33 27 116 5412 ESEL363608 36 36 8 33 33 136 5412 ESEL201610 20 16 10 17 13 44 5412 ESEL202010 20 20 10 17 17 53 5412 ESEL241210 24 12 10 21 9 42 5412 ESEL242010 24 20 10 21 17 62 5412 ESEL242410 24 24 10 21 21 71 5412 ESEL302010 30 20 10 27 17 74 5412 ESEL302410 30 24 10 27 21 86 5412 ESEL303010 30 30 10 27 27 100 5412 ESEL362410 36 24 10 33 21 101 5412 ESEL363010 36 30 10 33 27 122 5412 ESEL201612 20 16 12 17 13 48 5412 ESEL202012 20 20 12 17 17 57 5412 ESEL202412 20 24 12 17 21 66 5412 ESEL242012 24 20 12 21 17 66 5412 ESEL242412 24 24 12 21 21 76 5412 ESEL302412 30 24 12 27 21 92 5412 ESEL303012 30 30 12 27 27 110 5412 ESEL362412 36 24 12 33 21 107 5412 ESEL363012 36 30 12 33 27 129 5412 ESEL363612 36 36 12 33 33 150 5412 ESEL242016 24 20 16 21 17 74 5412 ESEL242416 24 24 16 21 21 86 5412 ESEL302416 30 24 16 27 21 102 5412 ESEL362416 36 24 16 33 21 119 5412 ESEL363016 36 30 16 33 27 142 5412 ESEL302420 30 24 20 27 21 113 5412 ESEL363020 36 30 20 33 27 155 5412 ESEL302424 30 24 24 27 21 123NEMA 4-12 ENCLOSURESWATER, OIL & DUST TIGHT ENCLOSURES (WELDED MOUNTING FEET)5412 ESEL
