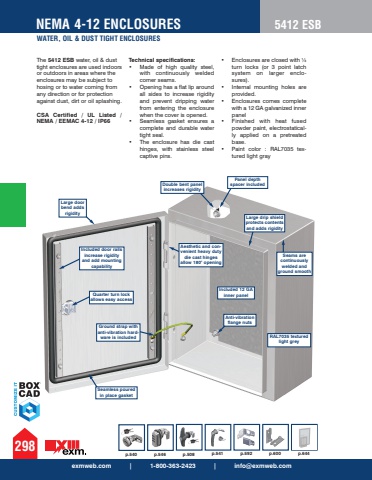

exmweb.com | 1-800-363-2423 | [email protected] 4-12 ENCLOSURESWATER, OIL & DUST TIGHT ENCLOSURES2985412 ESBThe 5412 ESB water, oil & dust tight enclosures are used indoors or outdoors in areas where the enclosures may be subject to hosing or to water coming from any direction or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 4-12 / IP66 Technical specifications:%u2022 Made of high quality steel, with continuously welded corner seams. %u2022 Opening has a flat lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the cover is opened. %u2022 Seamless gasket ensures a complete and durable water tight seal. %u2022 The enclosure has die cast hinges, with stainless steel captive pins. %u2022 Enclosures are closed with %u00bc turn locks (or 3 point latch system on larger enclosures). %u2022 Internal mounting holes are provided. %u2022 Enclosures comes complete with a 12 GA galvanized inner panel %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : RAL7035 textured light grayIncluded 12 GA inner panelRAL7035 textured light greySeams are continuously welded and ground smoothLarge drip shield protects contents and adds rigidityAnti-vibration flange nuts Ground strap with anti-vibration hardware is includedSeamless poured in place gasketLarge door bend adds rigidityQuarter turn lock allows easy accessIncluded door rails increase rigidity and add mounting capabilityAesthetic and convenient heavy duty die cast hinges allow 180%u00b0 openingPanel depth Double bent panel spacer includedincreases rigidityp.540 p.546 p.508 p.541 p.592 p.600 p.644
