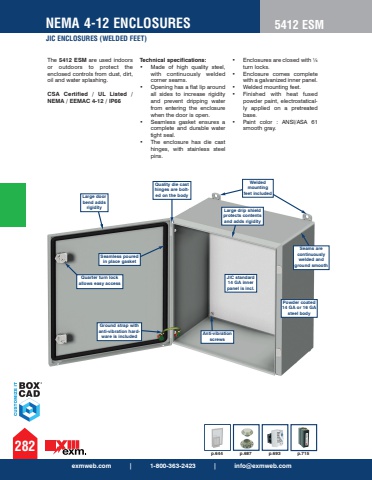

exmweb.com | 1-800-363-2423 | [email protected] 4-12 ENCLOSURESJIC ENCLOSURES (WELDED FEET)2825412 ESMThe 5412 ESM are used indoors or outdoors to protect the enclosed controls from dust, dirt, oil and water splashing. CSA Certified / UL Listed / NEMA / EEMAC 4-12 / IP66Technical specifications: %u2022 Made of high quality steel, with continuously welded corner seams. %u2022 Opening has a flat lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. %u2022 Seamless gasket ensures a complete and durable water tight seal. %u2022 The enclosure has die cast hinges, with stainless steel pins. %u2022 Enclosures are closed with %u00bc turn locks. %u2022 Enclosure comes complete with a galvanized inner panel. %u2022 Welded mounting feet. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : ANSI/ASA 61 smooth gray.Powder coated 14 GA or 16 GA steel bodyJIC standard 14 GA inner panel is incl.Anti-vibration screwsSeamless poured in place gasketGround strap with anti-vibration hardware is includedQuarter turn lock allows easy accessLarge drip shield protects contents and adds rigidityQuality die cast hinges are bolted on the body Large door bend adds rigiditySeams are continuously welded and ground smoothp.644 p.687 p.693 p.715Welded mounting feet included
